4-WHEEL ROTARY AXIS WITH 360 DEGREE ROTATION FOR 50W AND UP CO2 LASER ENGRAVER CUTTING MACHINE

SKU: LRA-GL49-01  Download the Manual

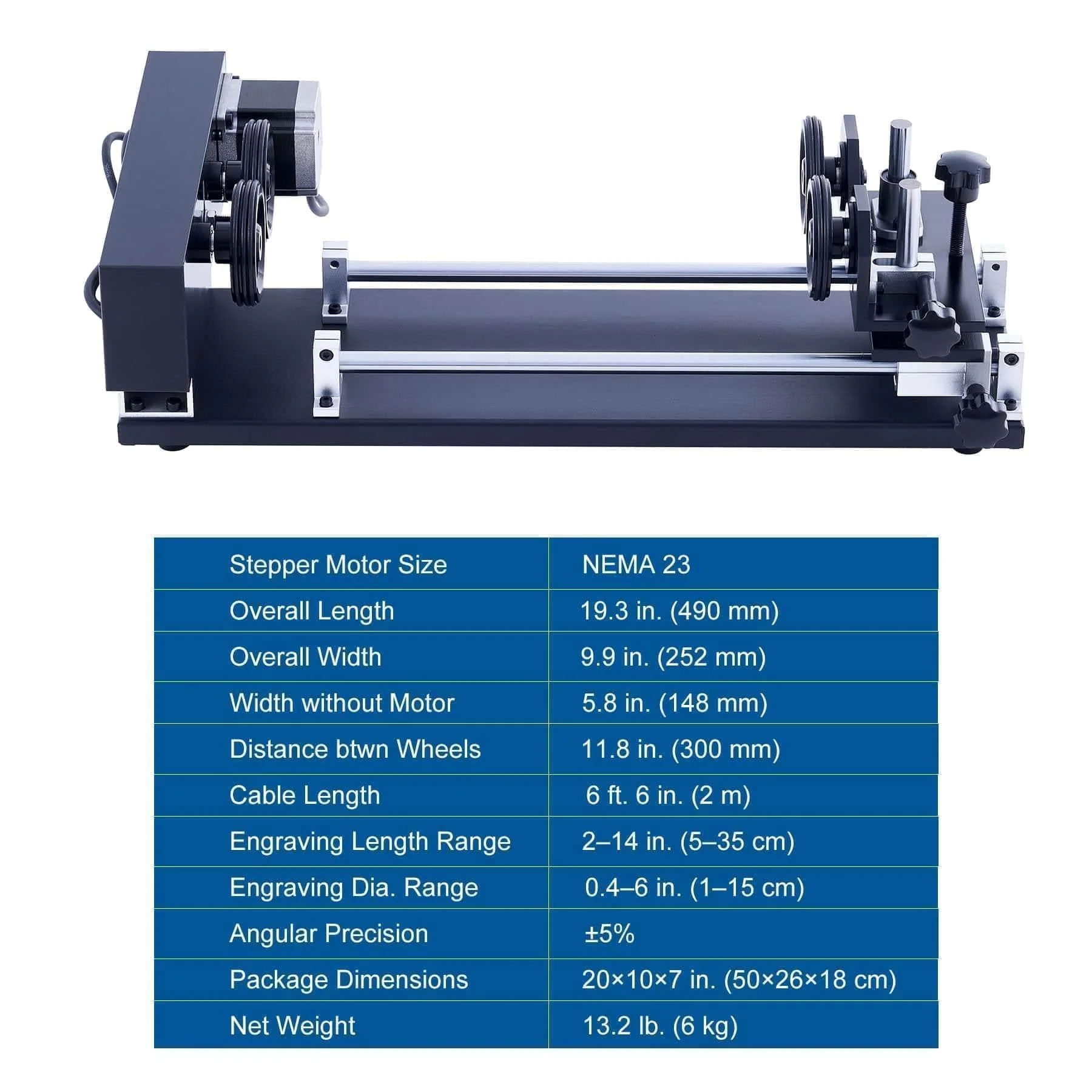

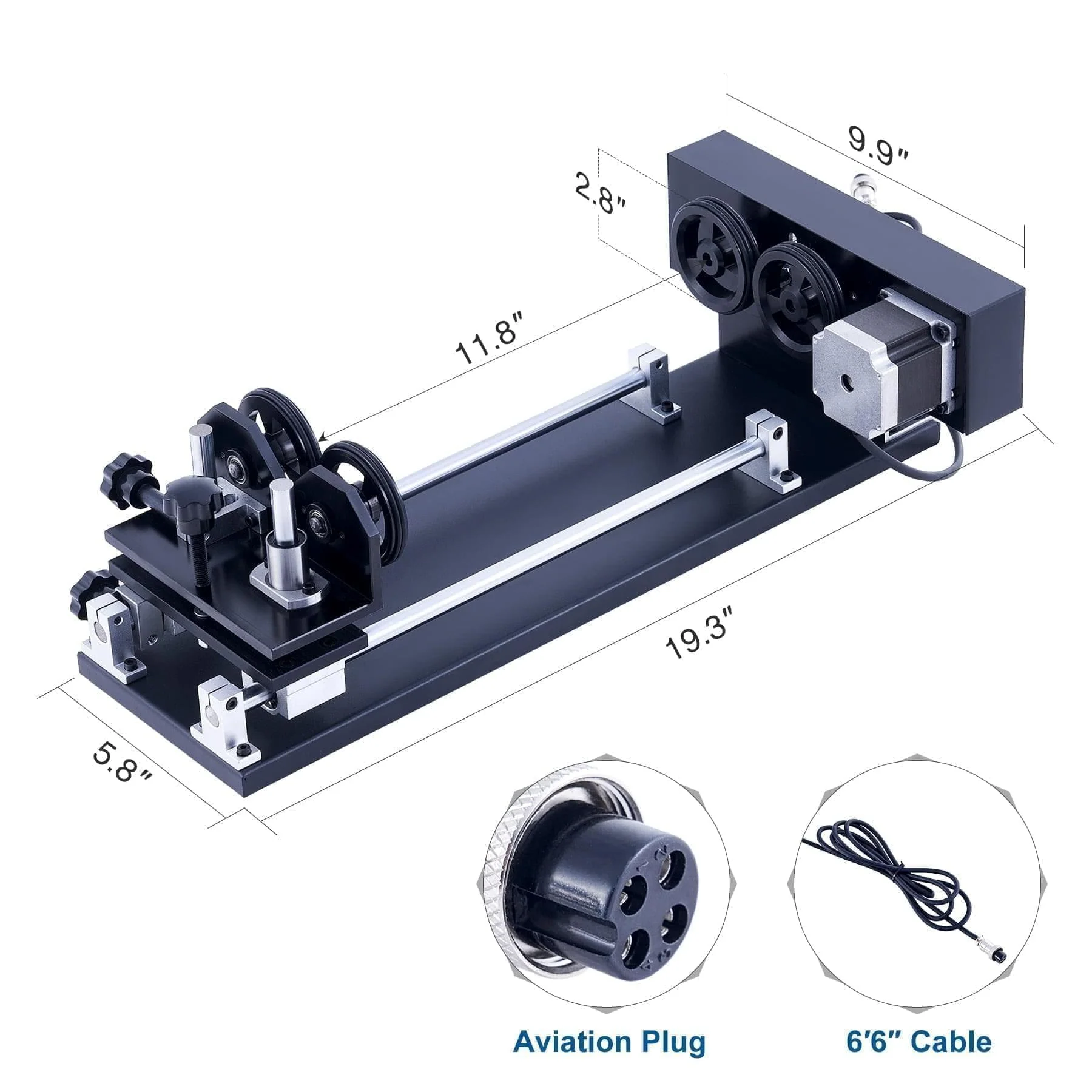

Convenient Size:

• Base Dimensions: 20” x 6" (49 x 15 cm)
• 4-Pin Connection Cable Length: 5'11" (1.8 m)
• Max. Distance between Wheels: 12" (30 cm)
• Motor: Nema 23 2-Phase Stepper Motor
• Net Weight: 13.2 lb. (6 kg)

Cutting Edge Features:

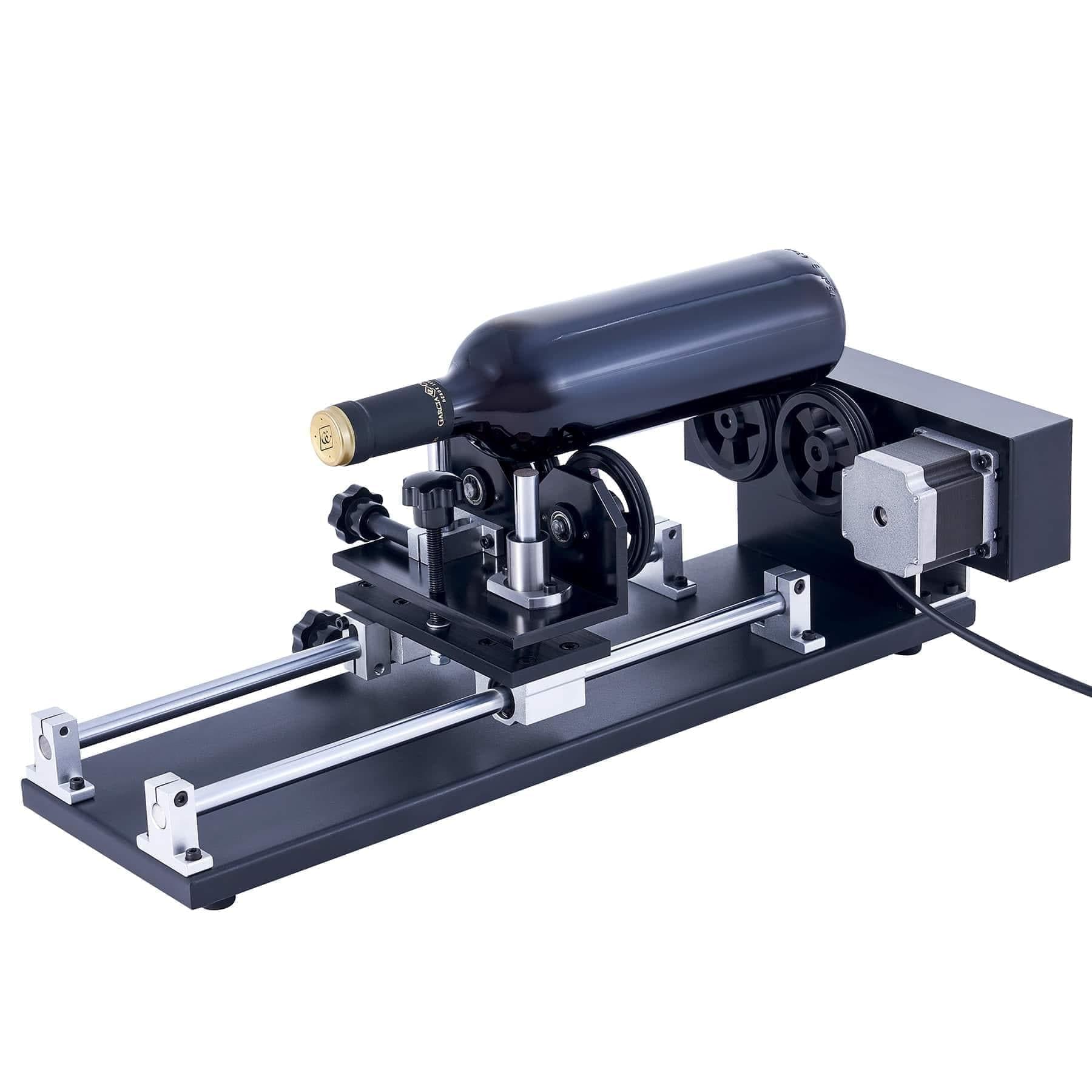

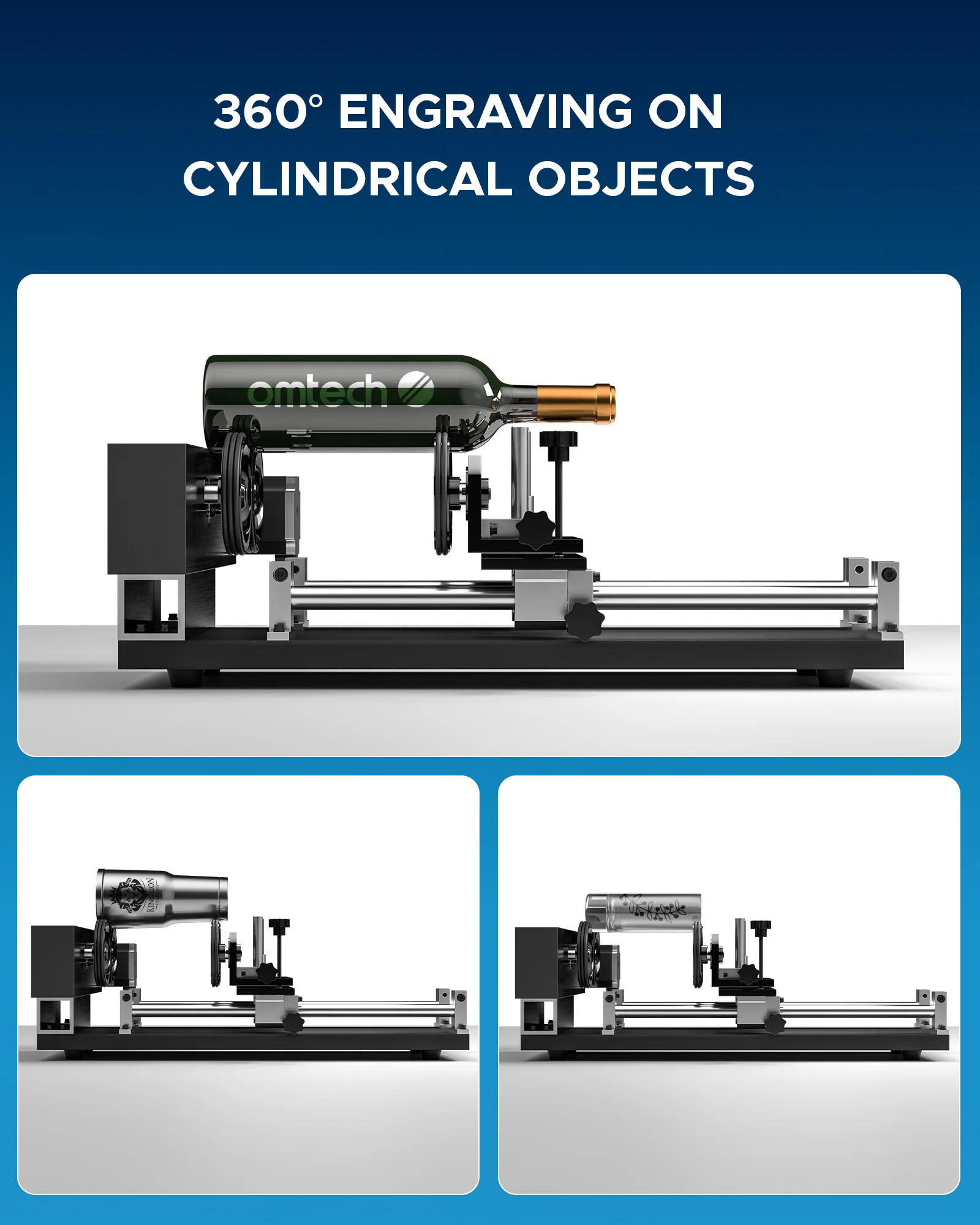

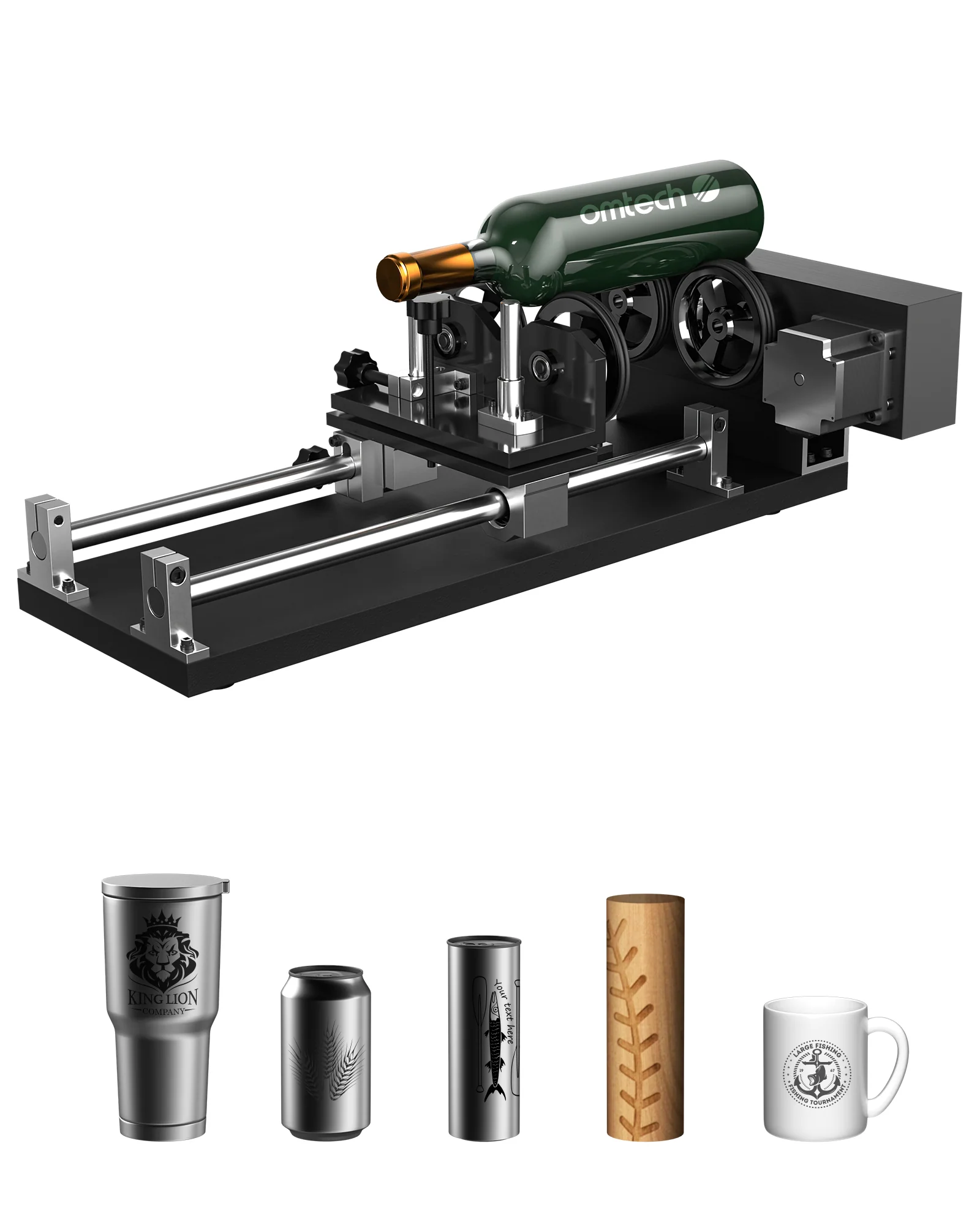

• ENGRAVE CYLINDRICAL SURFACES: This rotary axis works with most laser engravers rated 50W and up to perform 360-degree engravings on cylindrical or round objects such as cups, bottles, tubes, pipes, bowls, and more!

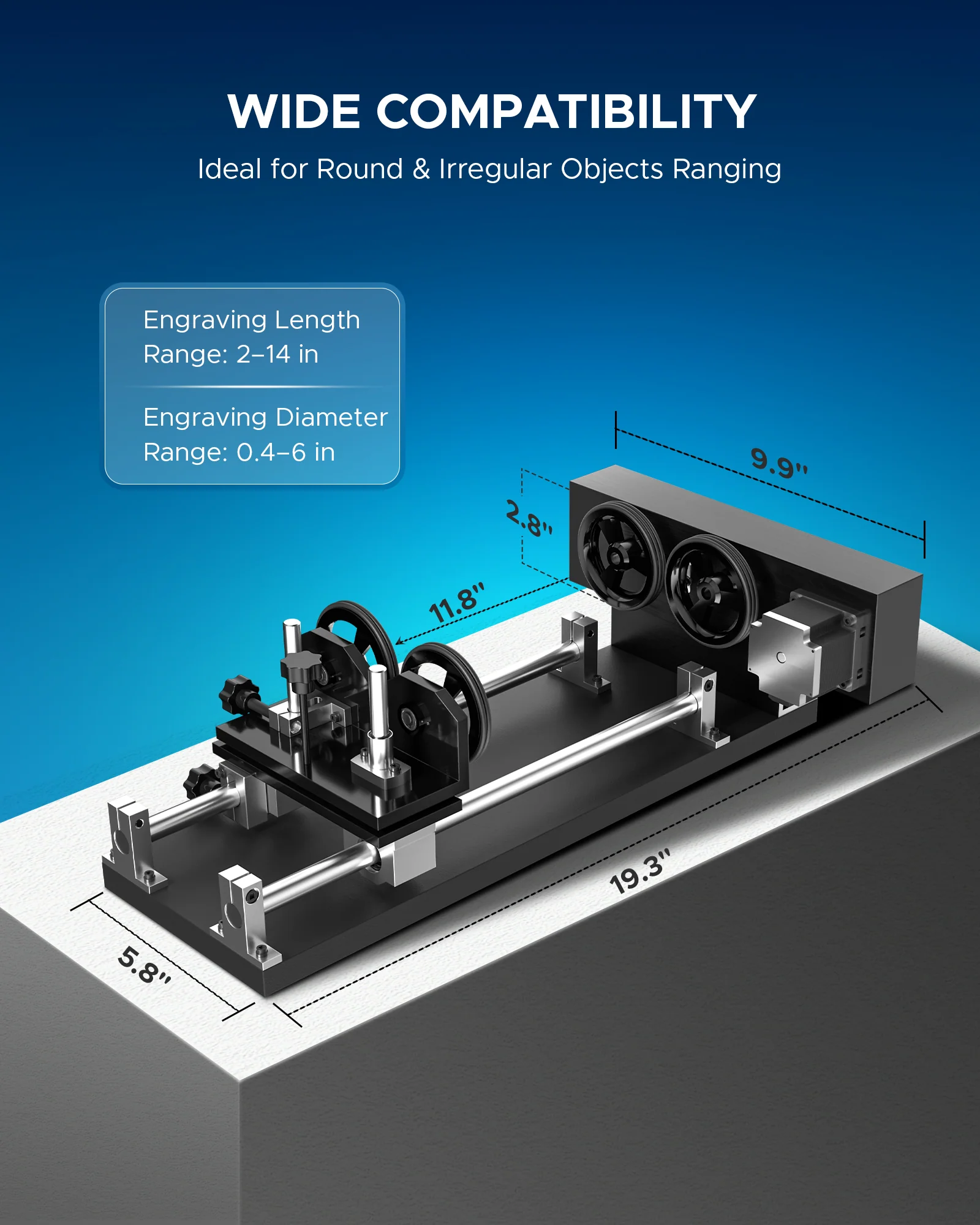

• 2 SETS OF DRIVE WHEELS: With a 12-inch maximum distance between the two sets of drive wheels, this attachment is ideal for objects 2-14 inches long and 0.4-5 inches in diameter.

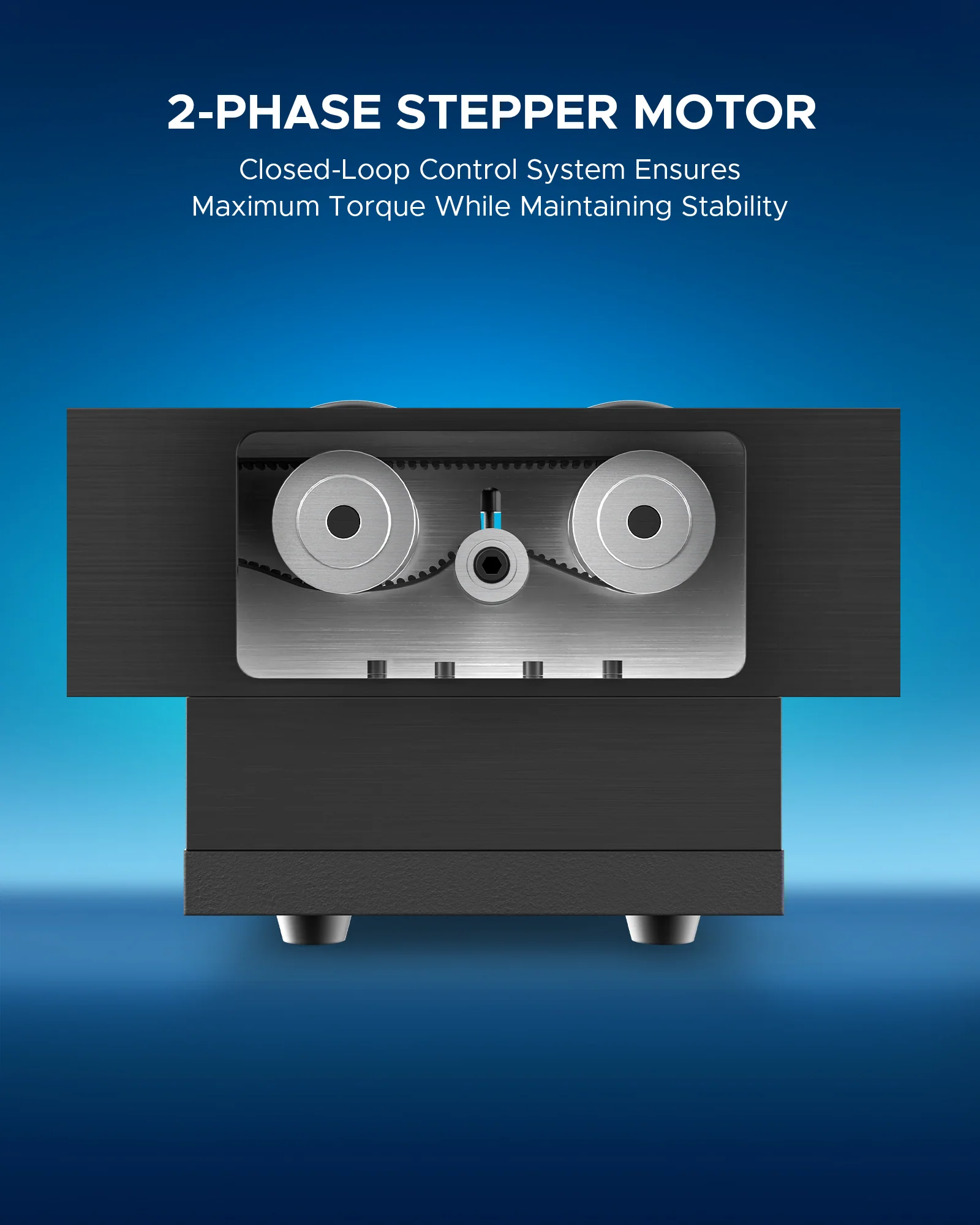

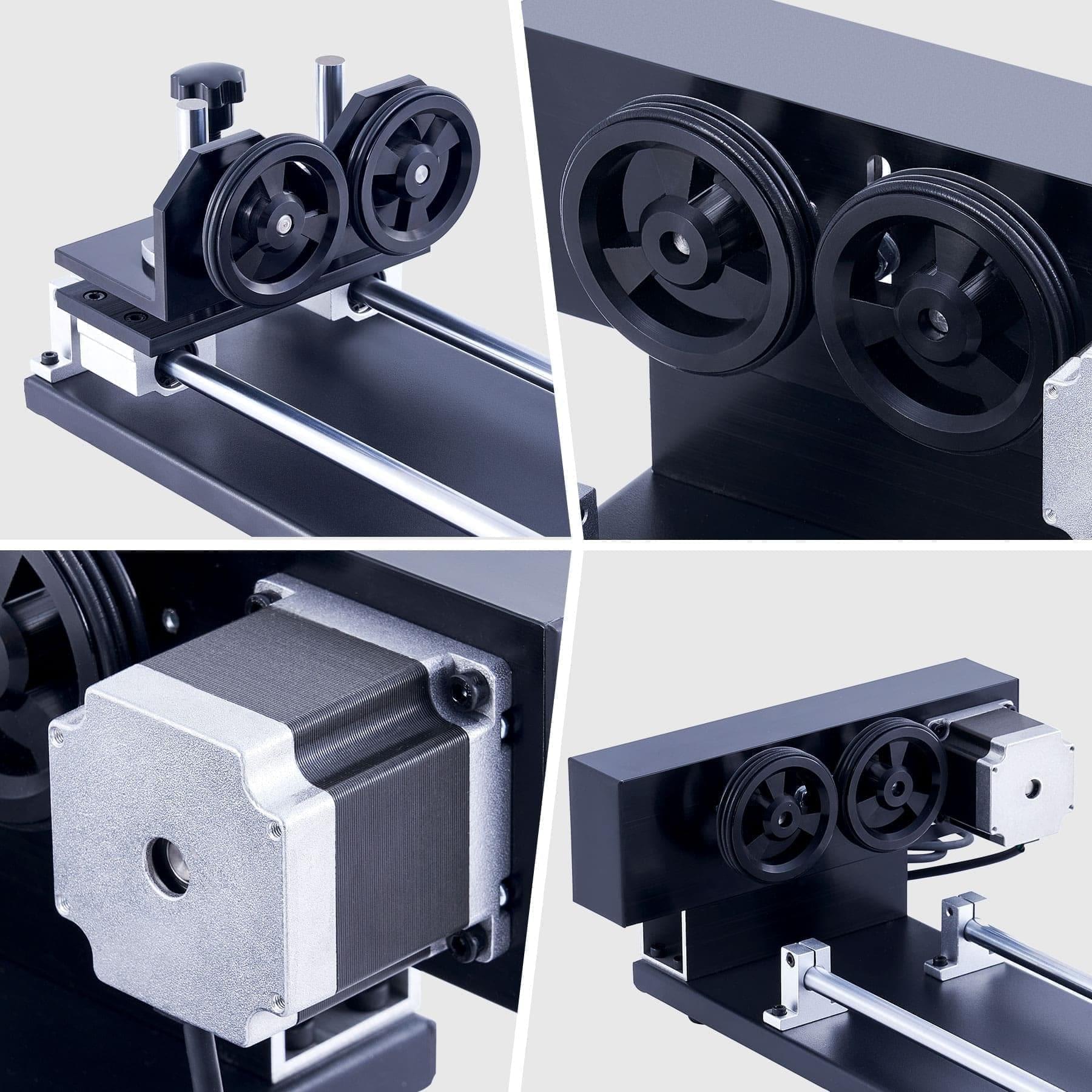

• STABLE PERFORMANCE: This rotary features a 2-phase stepper motor with a closed-loop feedback control system. Two durable rubber rings ensure the object rotates without slipping, giving you consistent engraving results.

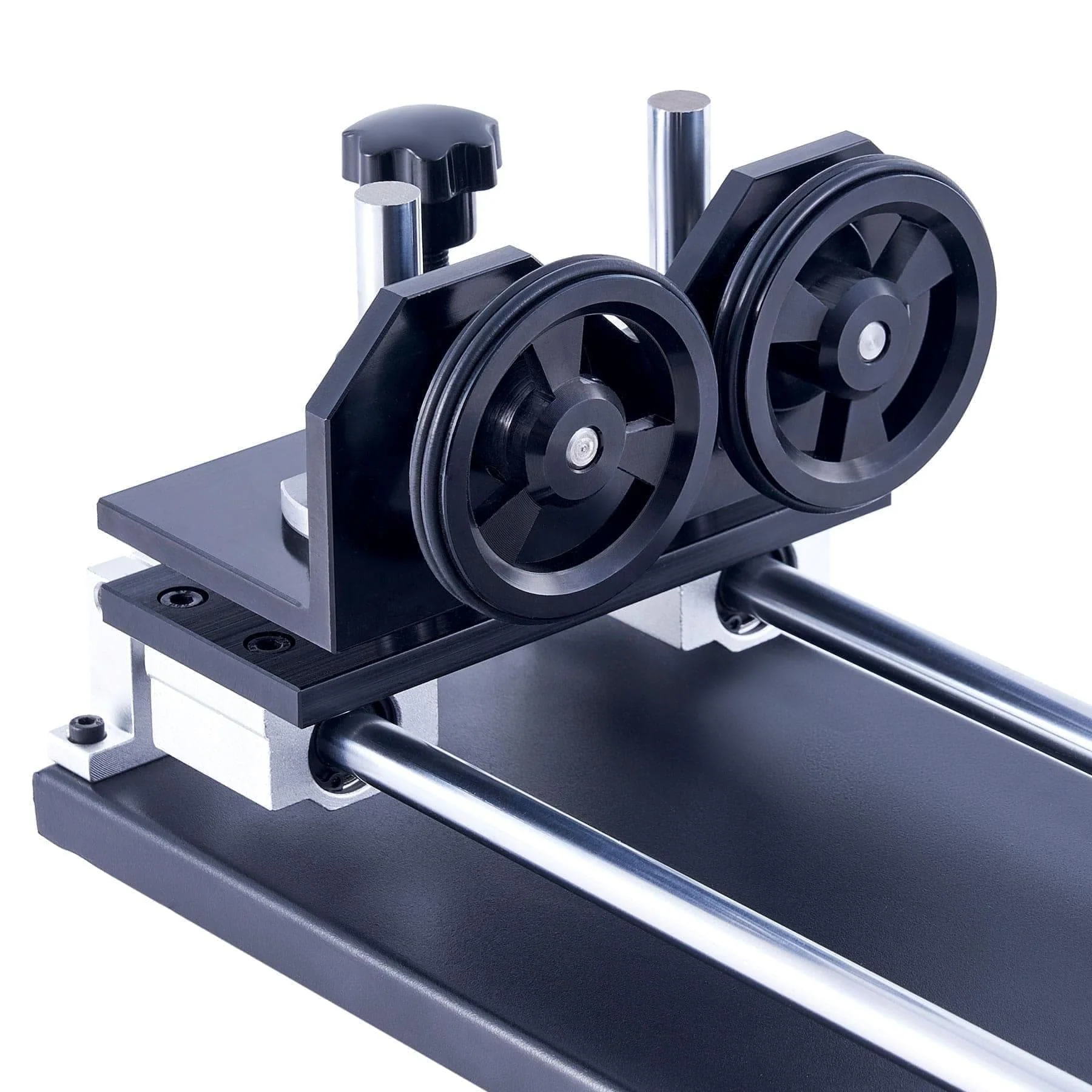

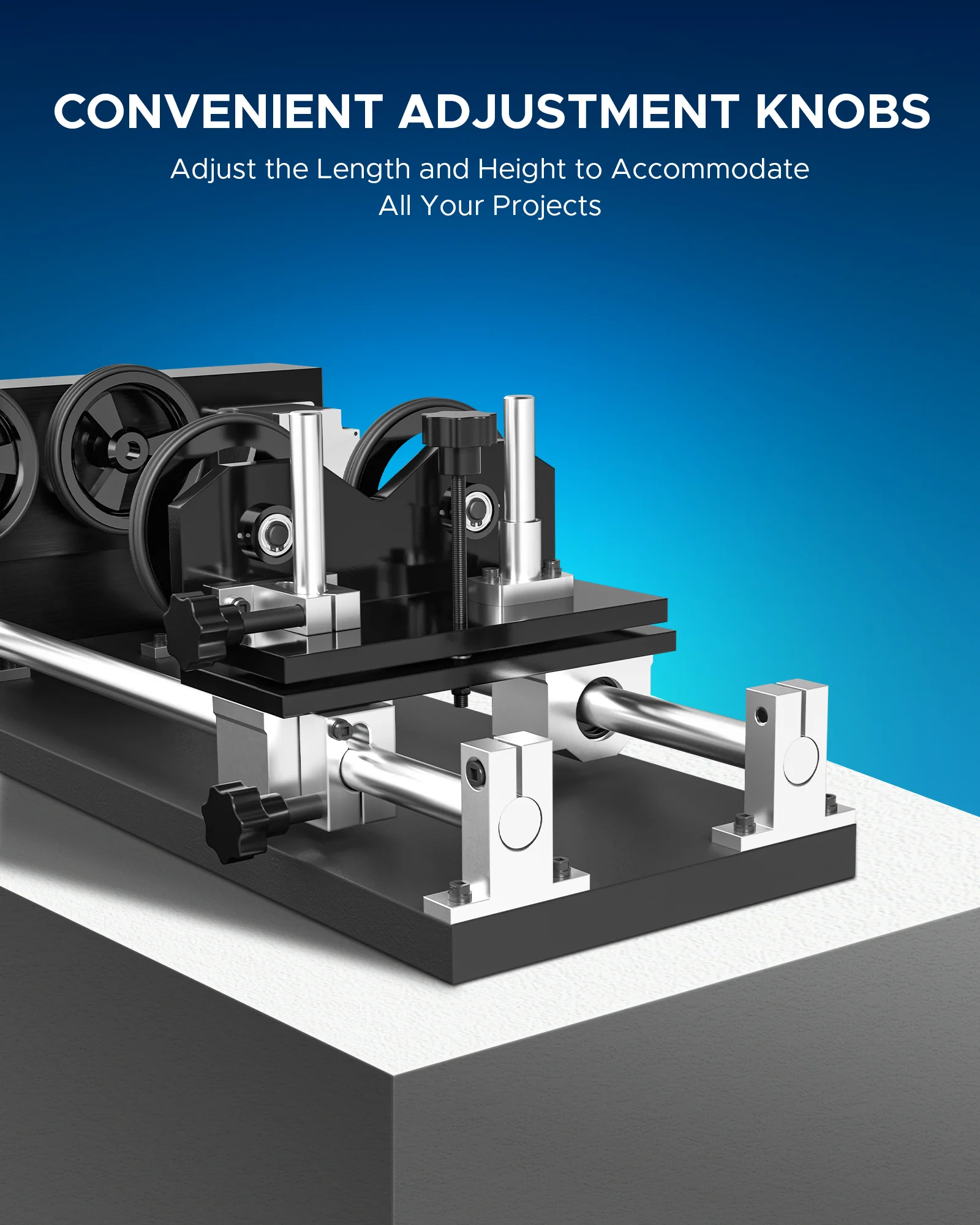

• SMOOTH & SILENT OPERATION: This rotation axis tool features a precision-engineered tailstock that allows for smooth, efficient, and noise-free operation that is ideal for DIY, home, or industrial use.

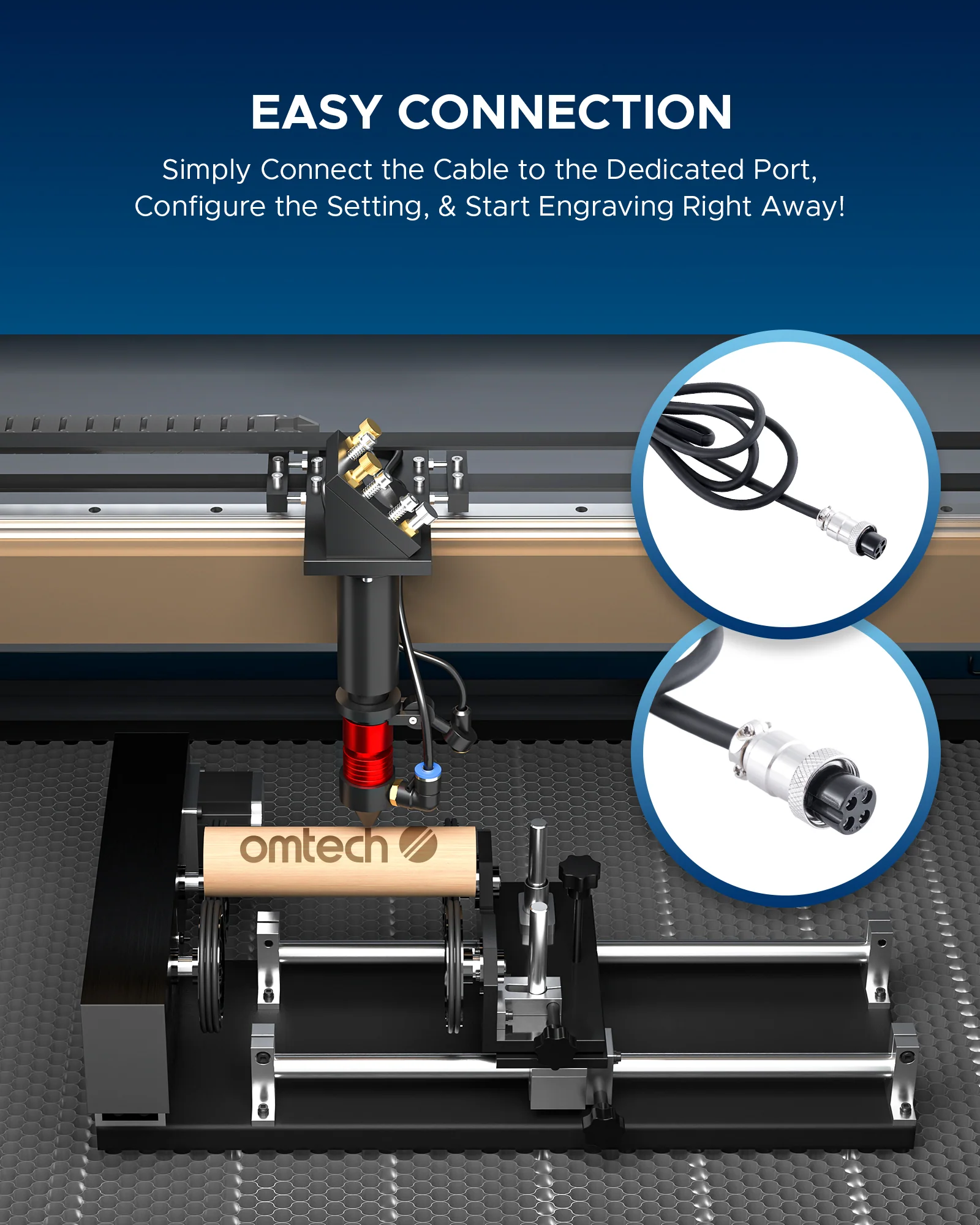

• EASY INSTALLATION: Connect the 4-pin cable to your laser engraver, configure your software, and you’re ready to start circular engravings. It draws power straight from your laser engraver! Only one cable is required for a quick setup.

Package Includes:

• 1 x Rotary Axis
• 1 x 4-Pin Cable

Warranty:

• 1-year warranty on all rotary axis accessories

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification

Summary:

Engraving cylindrical objects can be tricky. With our rotary axis, making 360-degree engravings is simple and efficient! Engrave laser masterpieces on bottles, bowls, and more.
