RDC6445S Ruida Replacement Control Panel Kit for CO2 Laser Engraving Machines

Features

• RDC6445S REPLACEMENT: This control panel package by OMTech provides everything you need to replace a Ruida 6445S control panel or upgrade to one for your CO2 laser machine, bringing more efficient and precise operation to all your cutting and engraving
• DEPENDABLE PERFORMANCE: As always, the provided control panel mainboard employs highly stable digital laser control signals and TTL output to ensure long-lasting dependable performance
• WIDE SOFTWARE COMPATIBILITY: This DSP controller pack is compatible with all the most popular engraving programs, allowing you to keep working with whatever you're used to, including RDWorks, LightBurn, AutoCAD, and CorelDraw

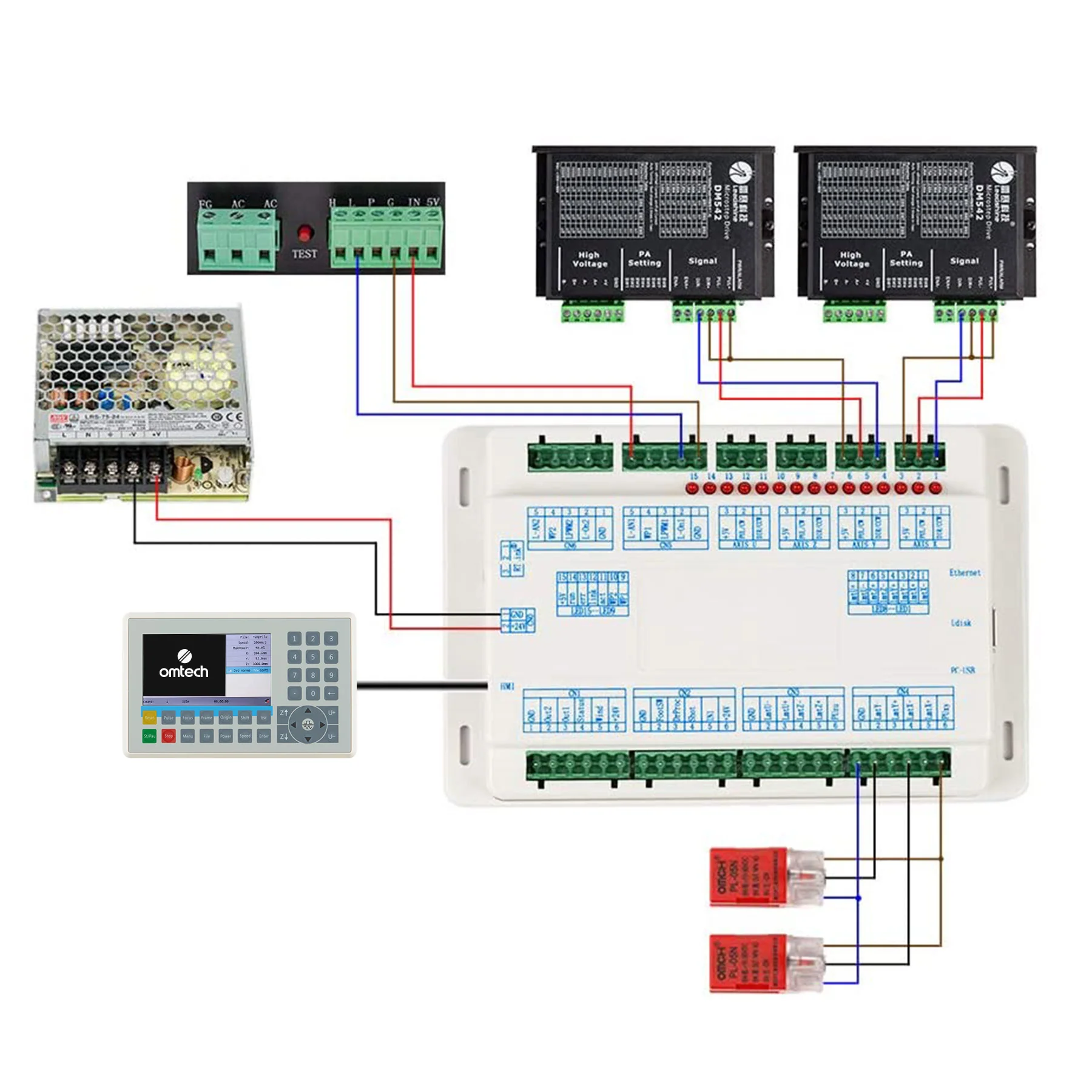

• EASY INSTALLATION: Our laser engraver replacement mainboard and control panel hooks up quickly and easily to your machine thanks to the clear instructions and complete accessory kit, including all necessary terminals, panel mounts, cables, and fasteners

Need a new digital signal processor for your trusty CO2 laser engraver cutter machine?

Look no further! Whether you're replacing a burned-out unit or upgrading from less helpful model, this DSP controller set from OMTech gives you everything you need to get your laser working better than ever. This laser engraver accessory kit includes an intuitive 6445S Ruida control panel to offer precise control over your work with greater ease and efficiency during use. Its durable mainboard uses highly stable digital laser control signals and transistor-transitor logic (TTL) outputs to ensure dependable service and superior longevity. Every terminal, panel mount, and fastener needed also comes included for easy installation to your machine. Once set up, it works with all the most common laser engraving software, including RDWorks, LightBurn, CADLaser, CorelDraw, AutoCAD, and REVision.

Get this OMTech replacement and upgrade DSP controller kit today and enjoy better cutting, engraving, marking, and etching than ever before!

Specifications

• Memory Capacity: 128MB
• I/O Input: 4-Channel Photoelectric Isolated
• TTL Levels: 5V, 12V, 24V
• OC Output: 4 Way (300 mA ea.)
• Laser Control: Digital
• PMW Value: 0-5V
• PMW Frequency: 2-50 kHz
• PMW Duty Ratio: 1-99%
• Motor Control Signal: Common-Anode Output
• Drive Capacity: 20 mA
• Max. Motor Control Pulse Frequency: 500 kHz
• Interpolation Methods: Linear, Circular Arc, B Spline
• Interpolation Accuracy: ±0.5 Pulse
• Compatible Software: RDWorks, LightBurn, CADLaser, CorelDraw, AutoCAD, REVision
• Operating Temperature Range: 32-122°F (0-50°C)
• Warranty: 1 Year

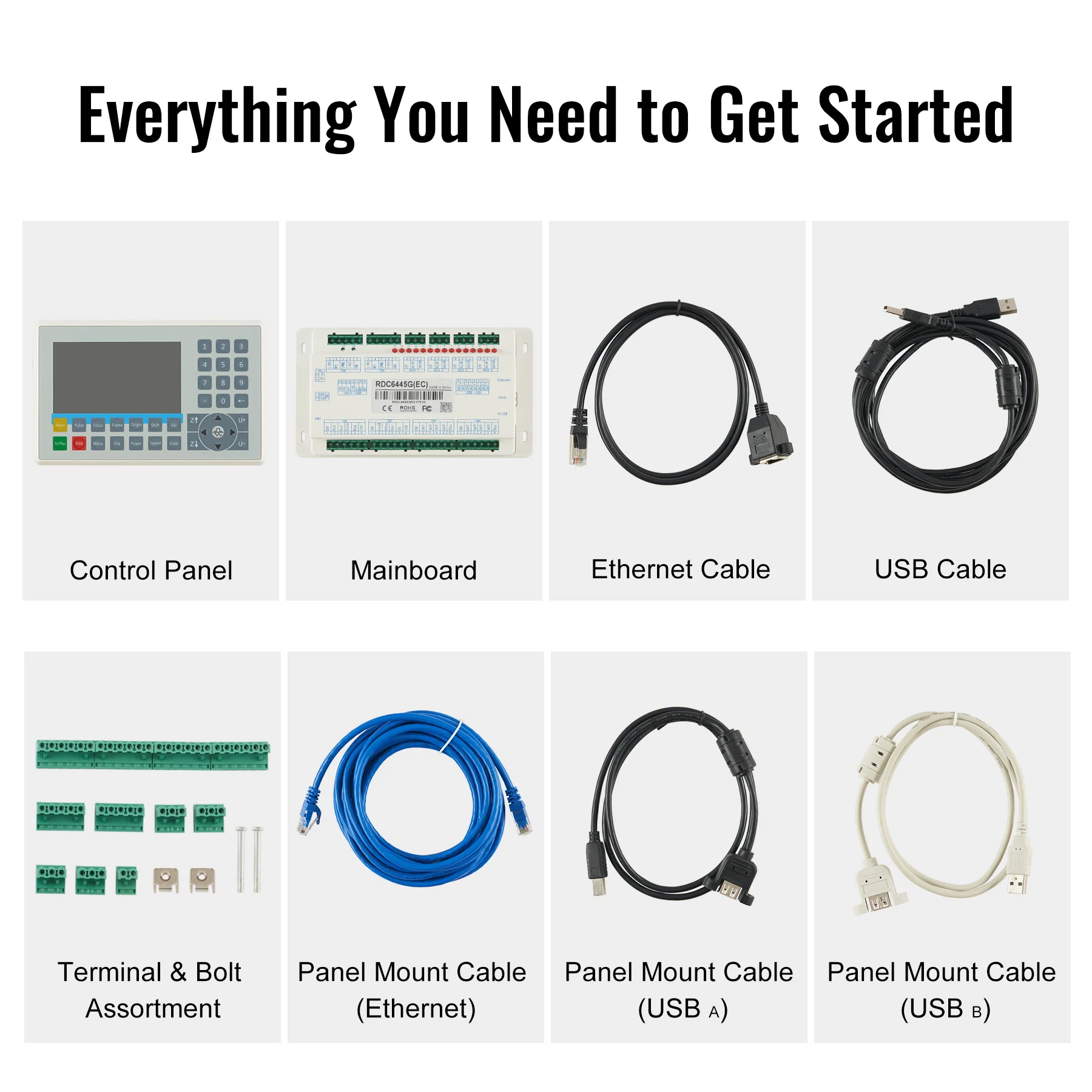

Package List

• 1 x Ruida 6445S Mainboard
• 1 x Ruida 6445S Control Panel
• 1 x USB Cable
• 1 x Ethernet Cable
• 3 x Panel Mount Cables
• 1 x Terminal & Bolt Assortment
• 1 x Instruction Manual
