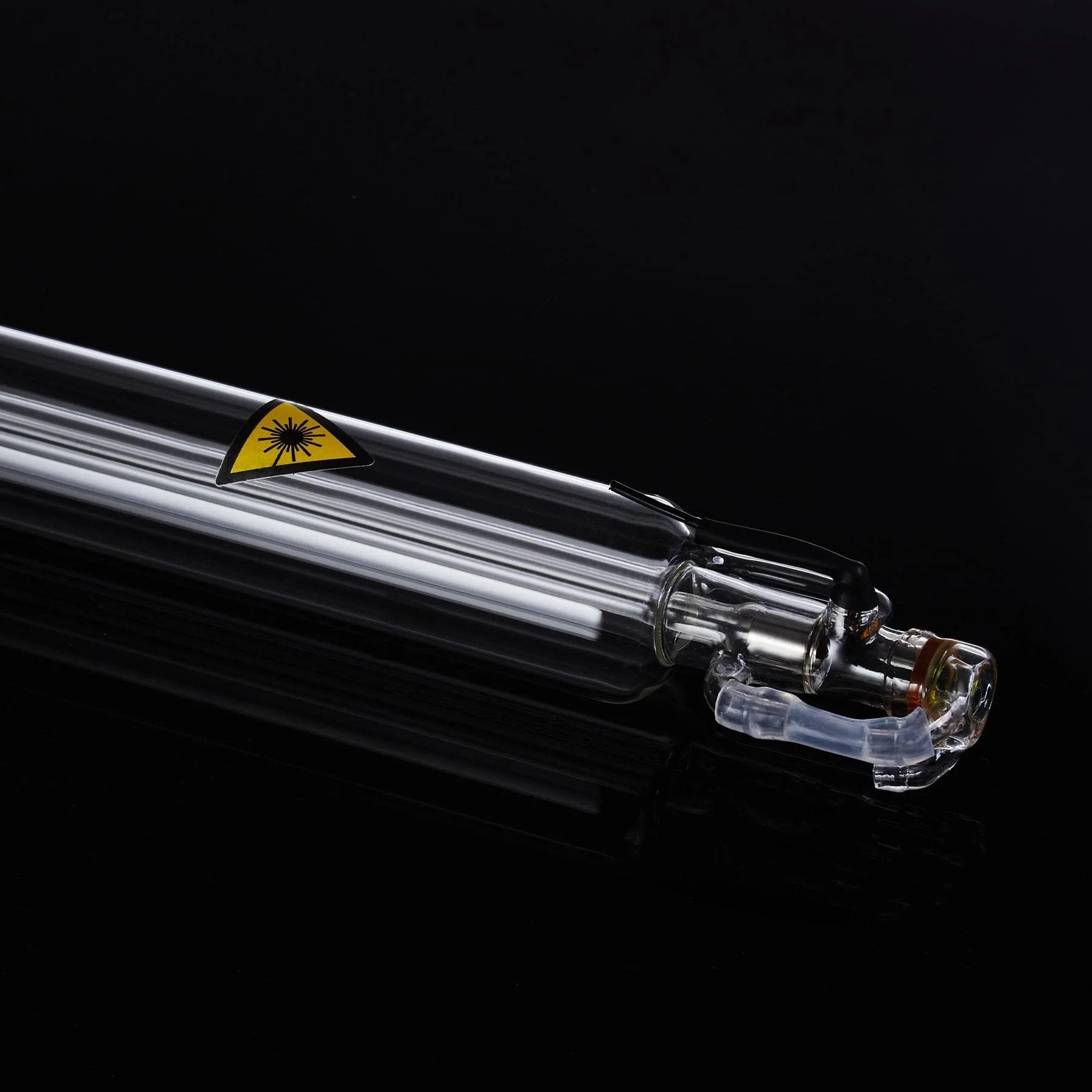

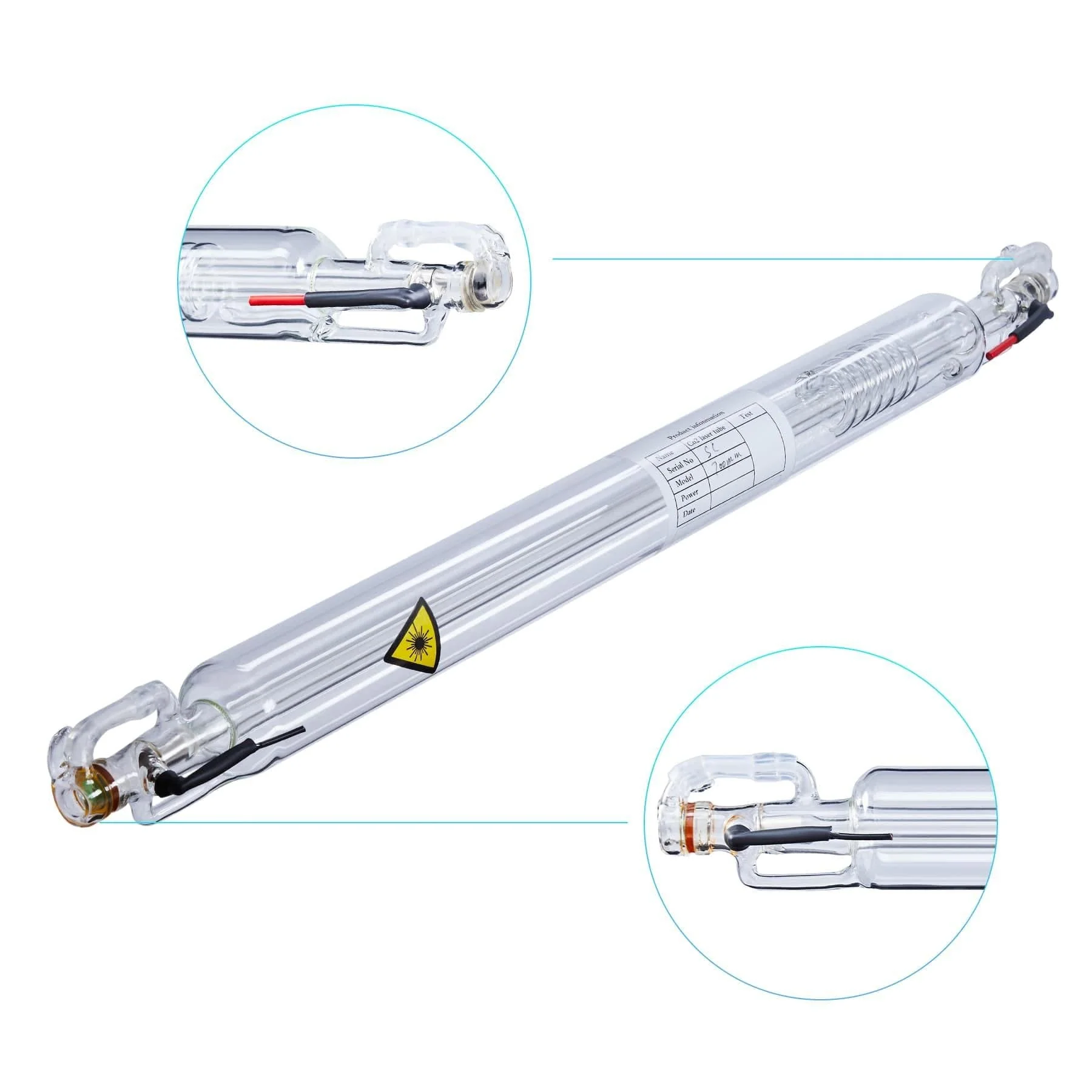

40W CO2 Laser Tube for Laser Engraver Cutting Machine

Precision Engraving:

• Our CO2 Laser Tubes produce stable laser beams for more precise markings on a wide variety of materials.

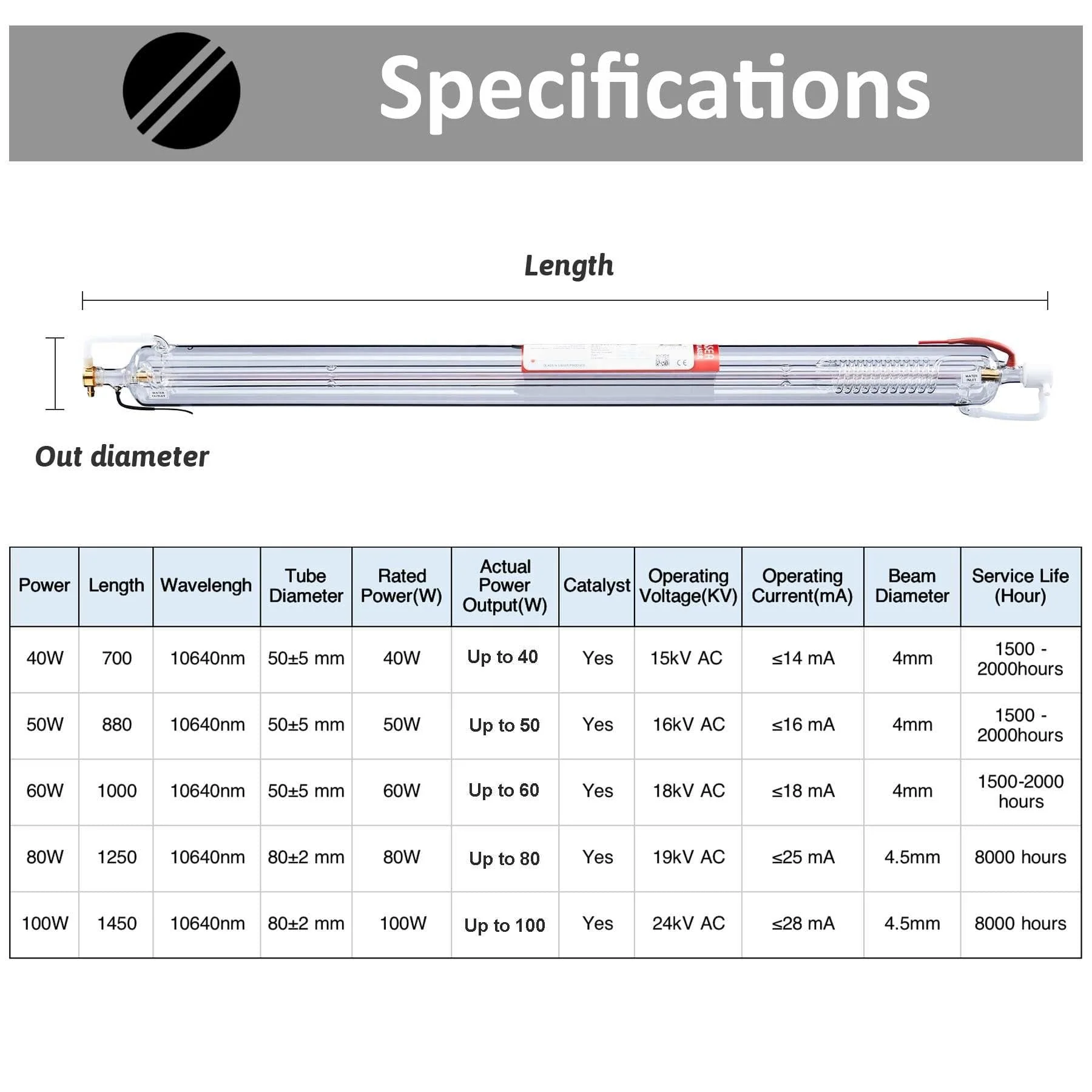

Power:

• Maximum power: 40W
• Beam Diameter: 2.5mm
• Triggering Voltage: 20 KV
• Operating Voltage: 15 KV
• Optimal Operating Current: 10-13 mA
• Power Stability: ±5%
• Wavelength: 10,640 nm
• Cut up to 1/8" thick plywood and acrylic/plexiglass

Lifetime:

• 40W Hermetic CO2 Glass Tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,500–2,000 Hours
• Moderate Power 40–70% = 1,000–1,200 Hours
• High Power 70–100% = 400–600 Hours

Additional Features:

• Product Length: 27.56” (700mm)
• Product Diameter: 50mm
• Net Weight: 2.2 lb
• Allowable Humidity: <85%
• Adjustable resonator

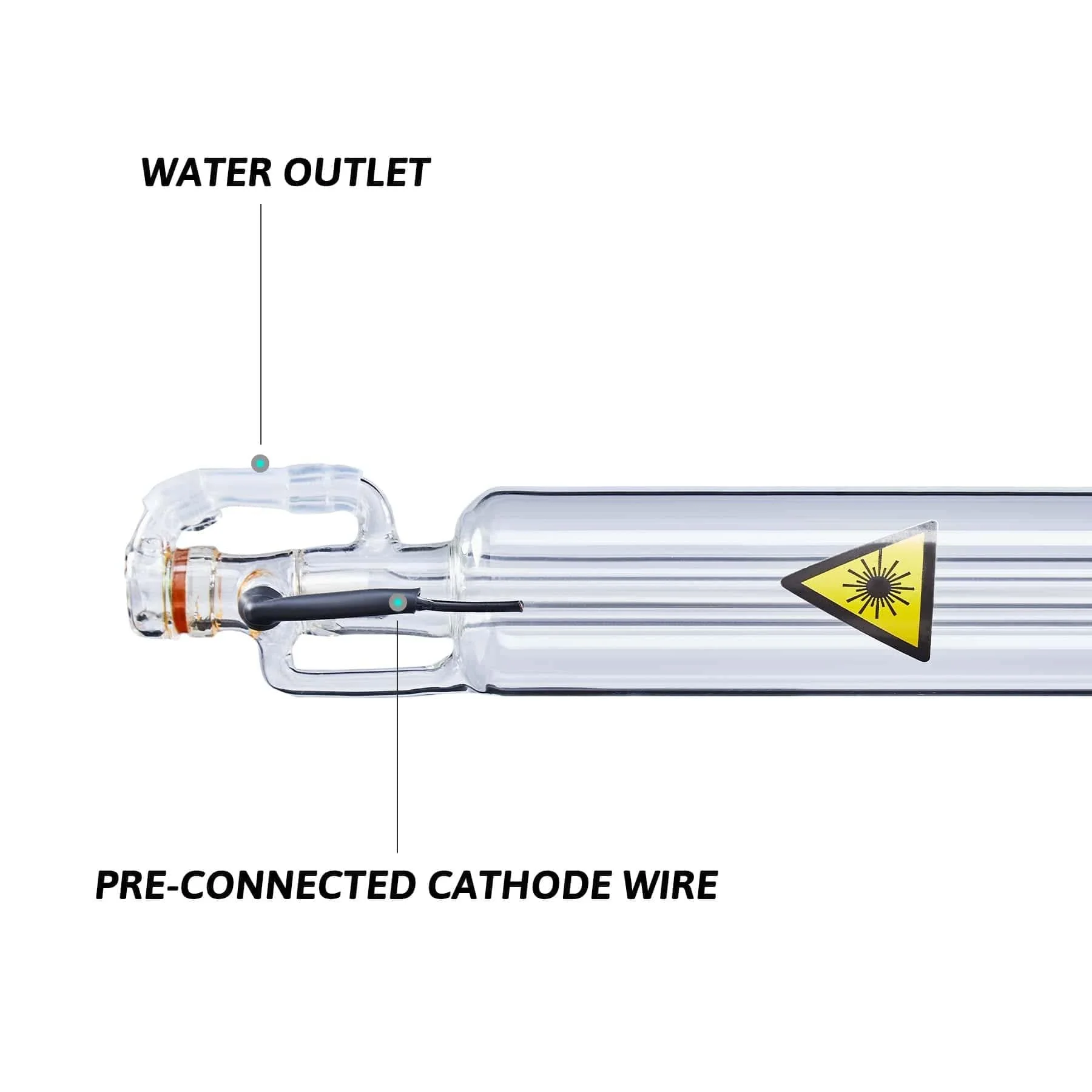

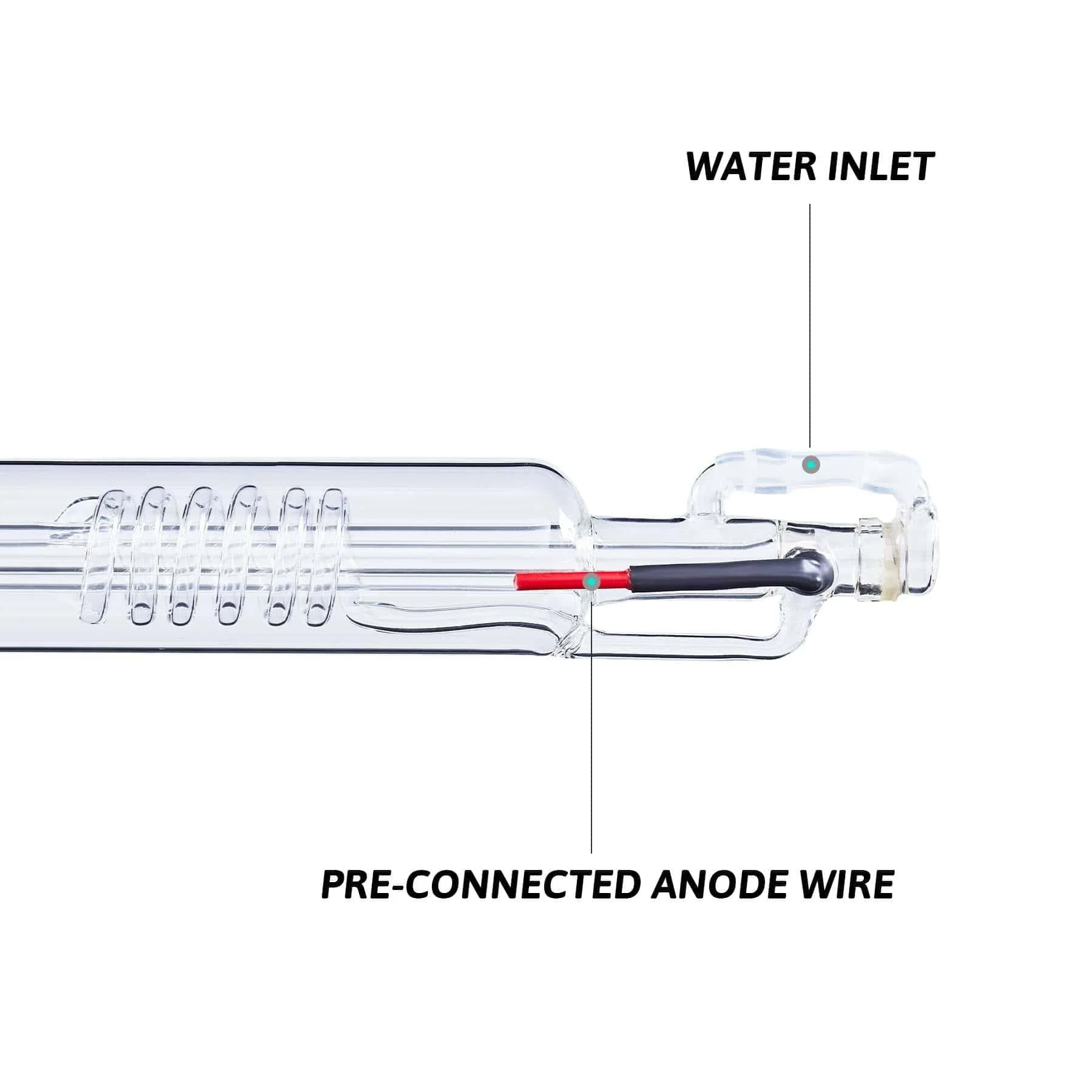

• The water outlet and inlet allow efficient flow of cooling water.
• Made out of borosilicate glass, copper, and plastic
• Optimum cooling water temperature between 60-70°F (15-19°C)

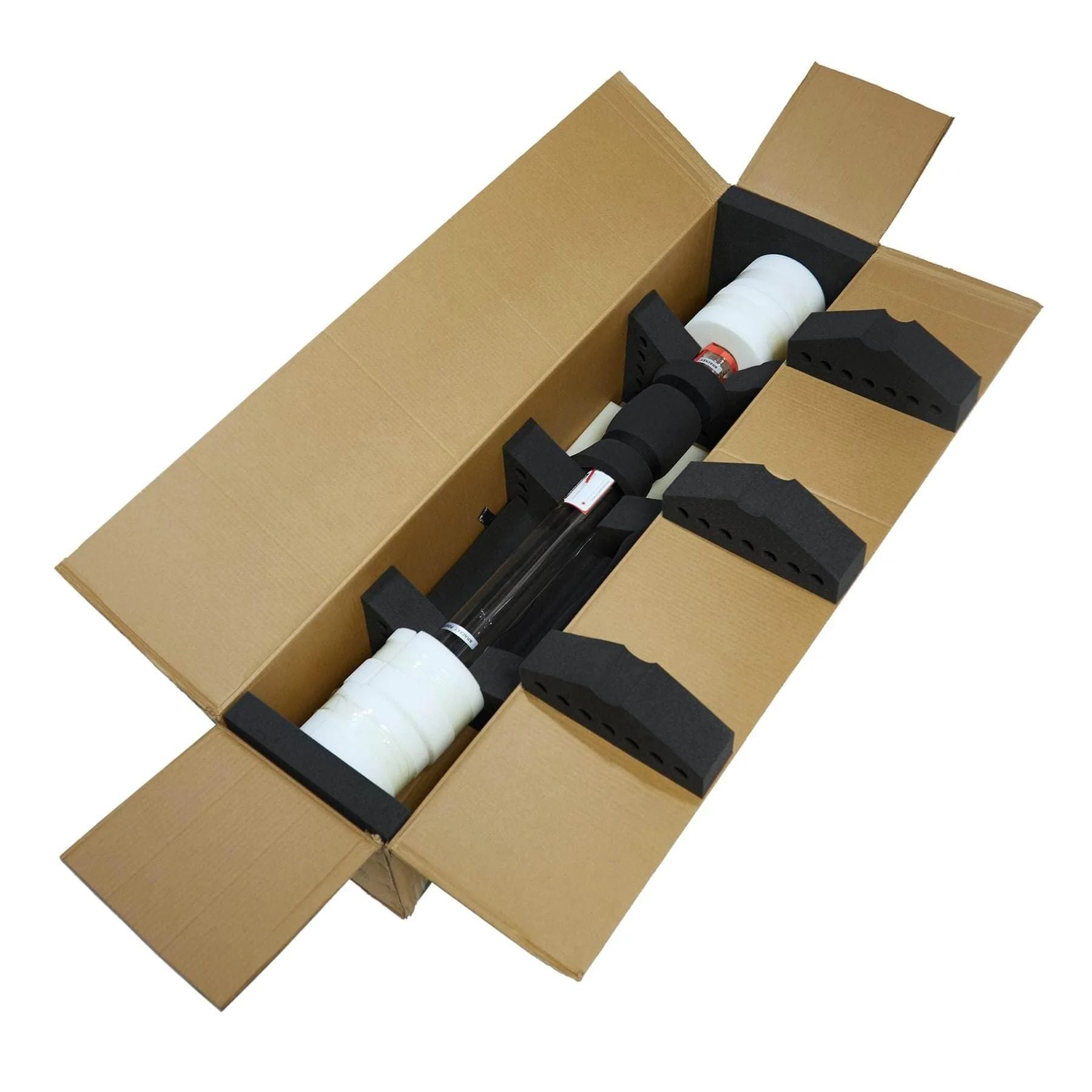

Package Includes:

• 1 x 40W Laser Tube

Warranty:

• No need to worry! We offer a 6-month warranty on all CO2 laser tubes 60W and below.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
