50W CO2 Laser Tube for Laser Engraver Cutting Machine (Not compatible with Polar)

Note: Polar is not suitable for this laser tube.

Precision Engraving:

• Our CO2 Laser Tubes produce stable laser beams for more precise markings on a wide variety of materials.

Power:

• Maximum Power: 50W
• Beam Diameter: 2.5mm
• Triggering Voltage: 22 KV
• Operating Voltage: 16 KV
• Optimal Operating Current: 13-15 mA
• Power Stability: ±5%
• Wavelength: 10,640 nm
• Cut up to 1/2" thick plywood and acrylic/plexiglass

Lifetime:

• 50W Hermetic CO2 Glass Tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,700–2,000 Hours
• Moderate Power 40–70% = 1,300–1,500 Hours
• High Power 70–100% = 800–1,000 Hours

Additional Features:

• Product Length: 34.65” (880mm)
• Product Diameter: 50mm
• Net Weight: 2.64 lb
• Allowable Humidity: <85%
• Adjustable resonator

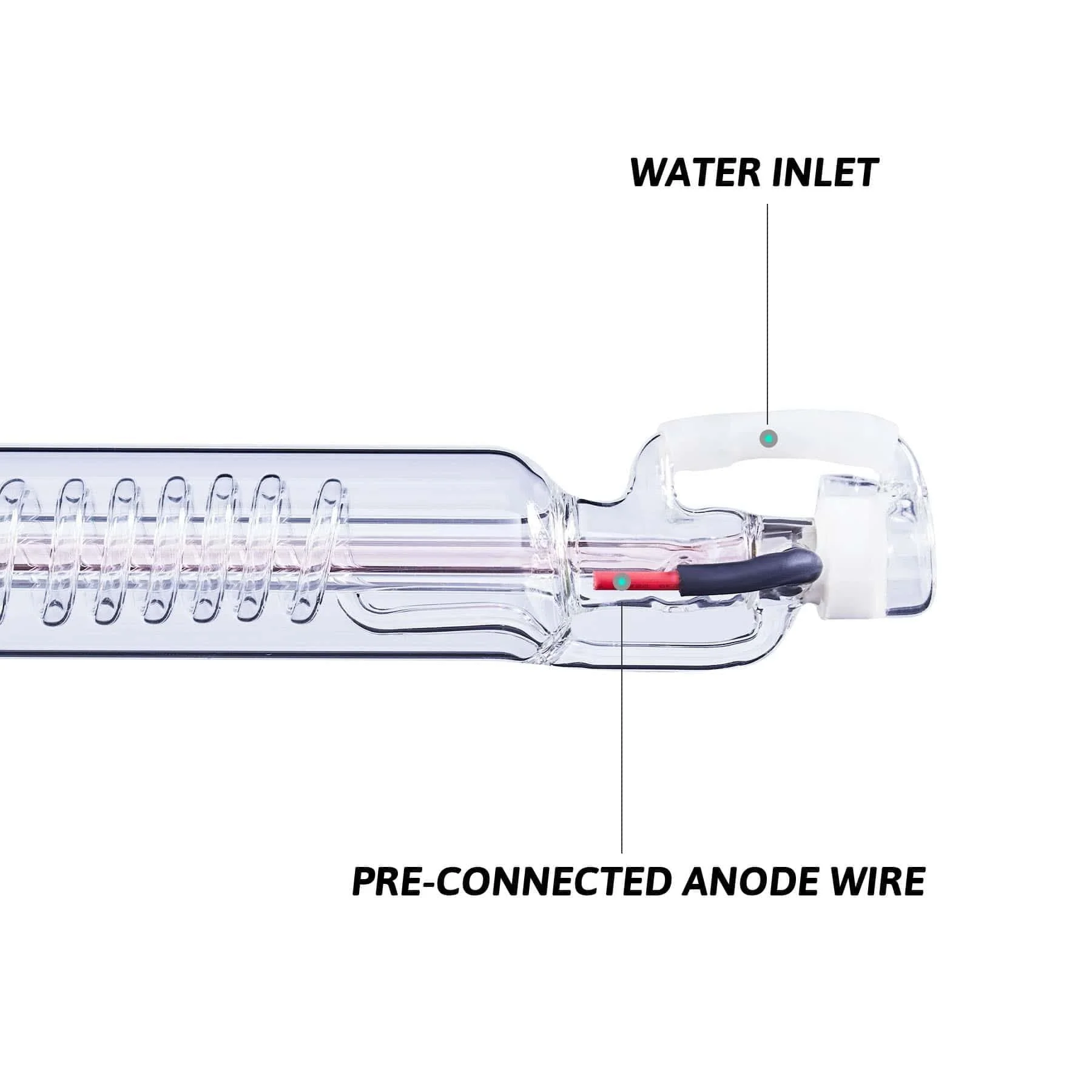

• The water outlet and inlet allow efficient flow of cooling water.
• Made out of borosilicate glass, copper, and plastic
• Optimum cooling water temperature between 60-70°F (15-19°C)


Package Includes:

• 1 x 50W Laser Tube

Warranty:

• No need to worry! We offer a 6-month warranty on all CO2 laser tubes 60W and below.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
