YL A Series A4s 100W CO2 Laser Tube

Download the Manual

Precision Engraving:

• The YL A-Series CO2 Laser Tubes offer advanced construction to produce highly stable laser beams for extremely precise markings.
• Outstanding performance to engrave sharper, cut deeper, and mark more accurately on cardboard, ceramics, cloth, glass, leather, paper, plastic, stone, wood, and more!

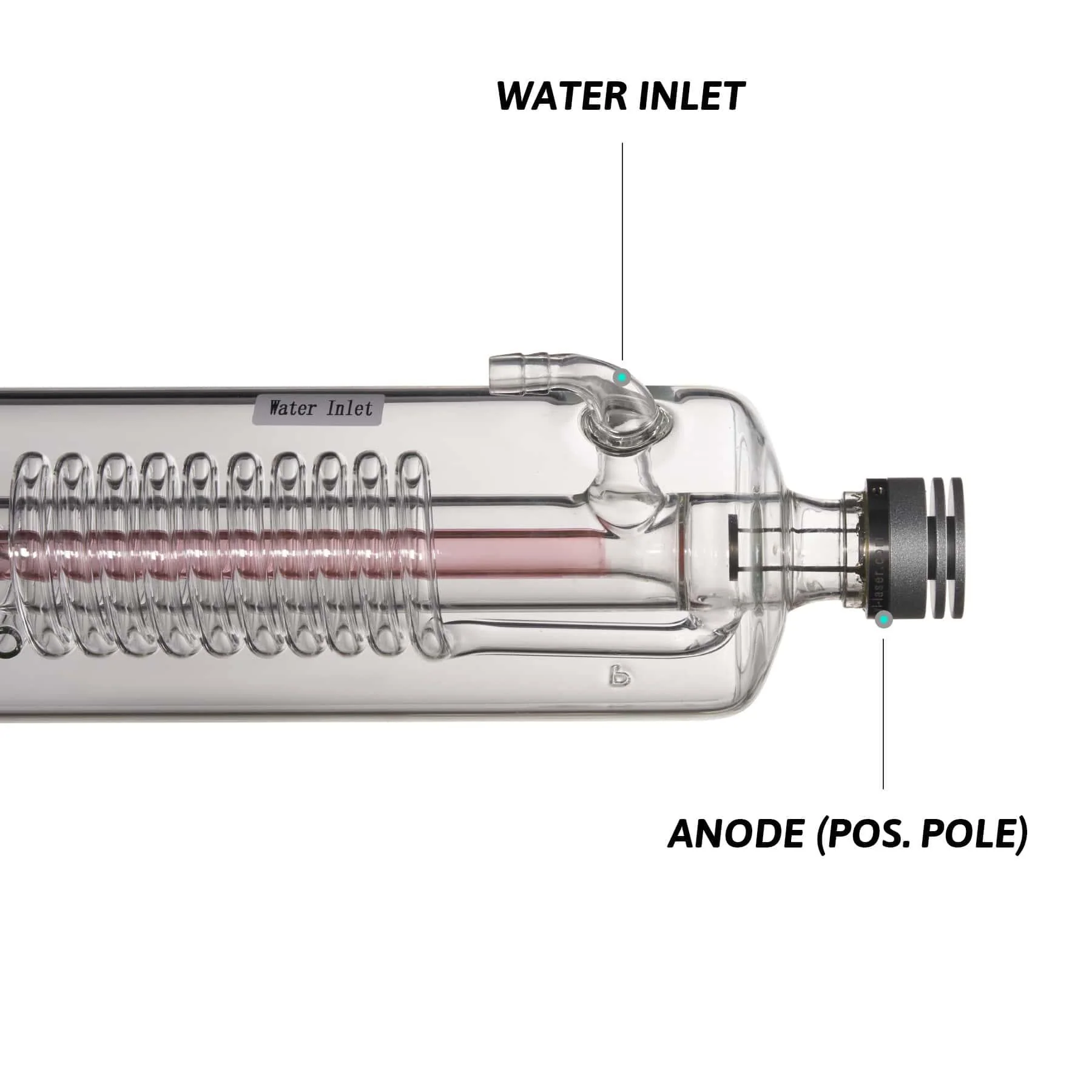

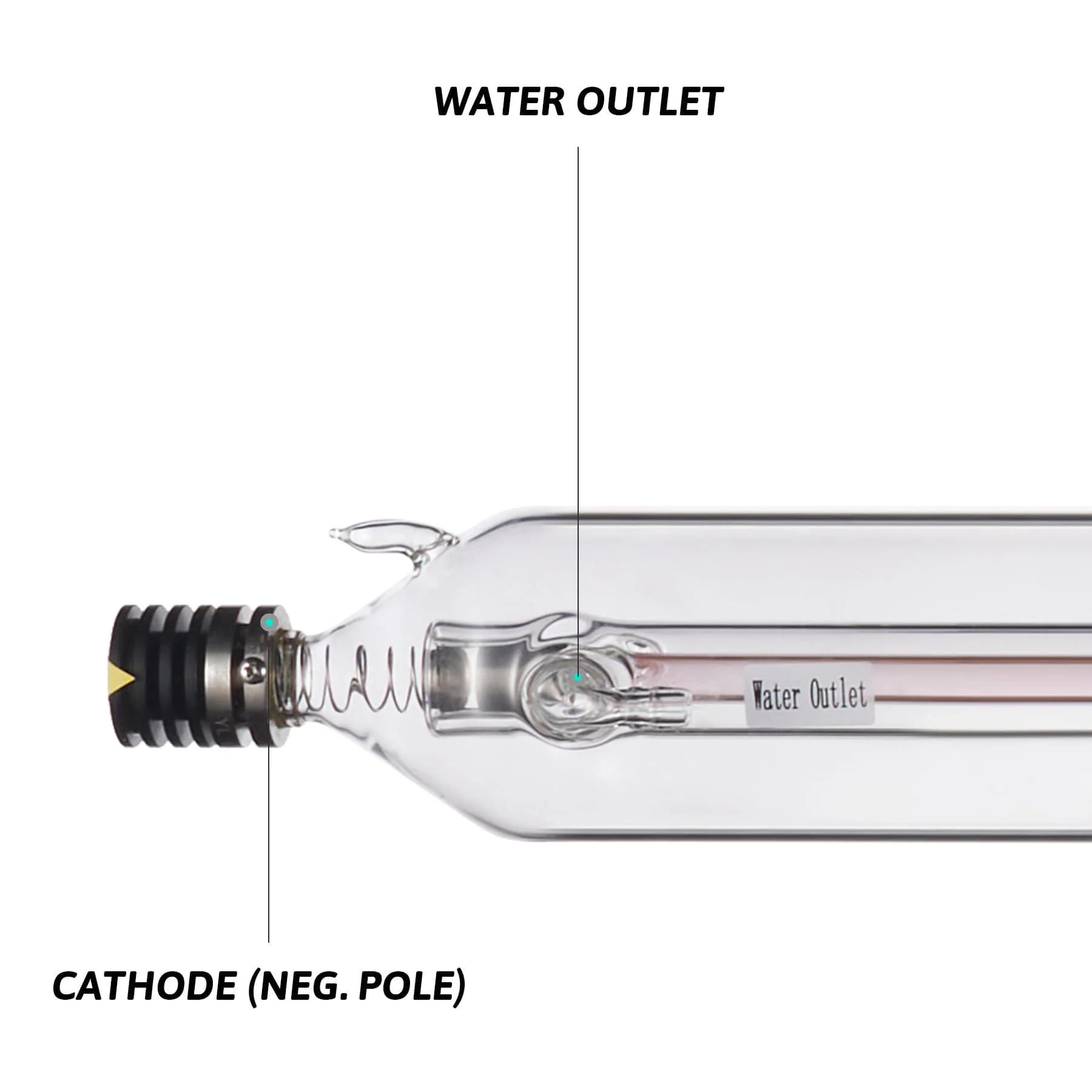

• The water outlet and inlet allow efficient flow of cooling water.
• Made out of borosilicate glass, copper, and aluminum alloy

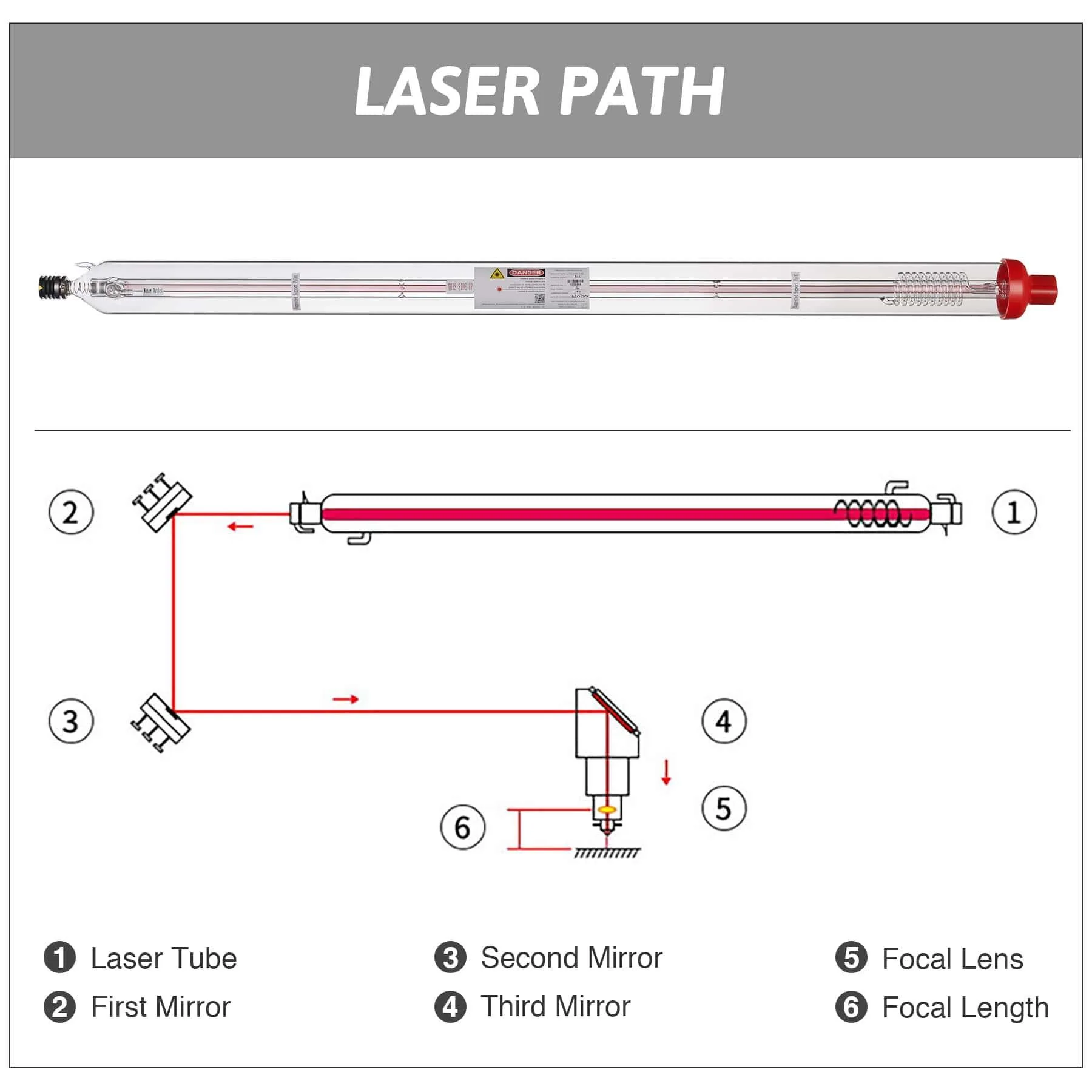

• Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!
• Simple and easy-to-use grounding and power connections

• We recommend using the OMTech CW-5200 industrial chiller with distilled water to maximize the laser tube’s lifetime.

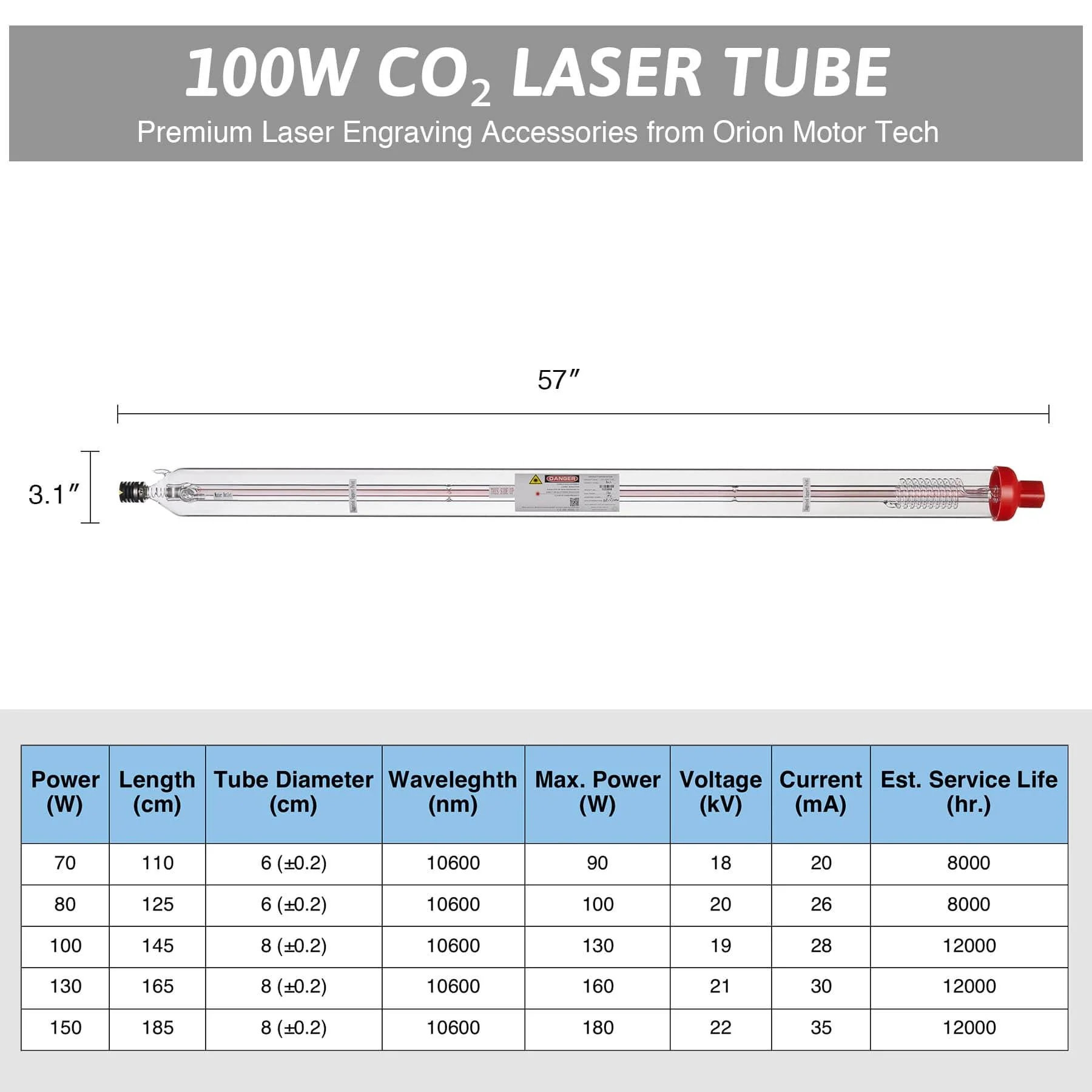

High-Power Specs:

• Rated Power: 100W
• Peak Power: 130W
• Beam Diameter: 0.18 in. (4.5mm)
• Operating Voltage: 19kV
• Max. Operating Current: 28 mA
• Product Length: 57 in. (1450mm)
• Diameter: 3.1 in. (80±2mm)
• Net Weight: 6.6 lb (3 kg)
• Allowable Humidity: <85%
• Optimum cooling water temperature between 60-70°F (15 -19°C)
• Cut up to 10 mm (⅖″) thick plywood and acrylic/plexiglass

Extended Lifetime:

• 100W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 12,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 11,000–12,000 Hours
• Moderate Power 40–70% = 8,000–10,000 Hours
• High Power 70–100% = 4,500–5,000 Hours

Easy to Install:

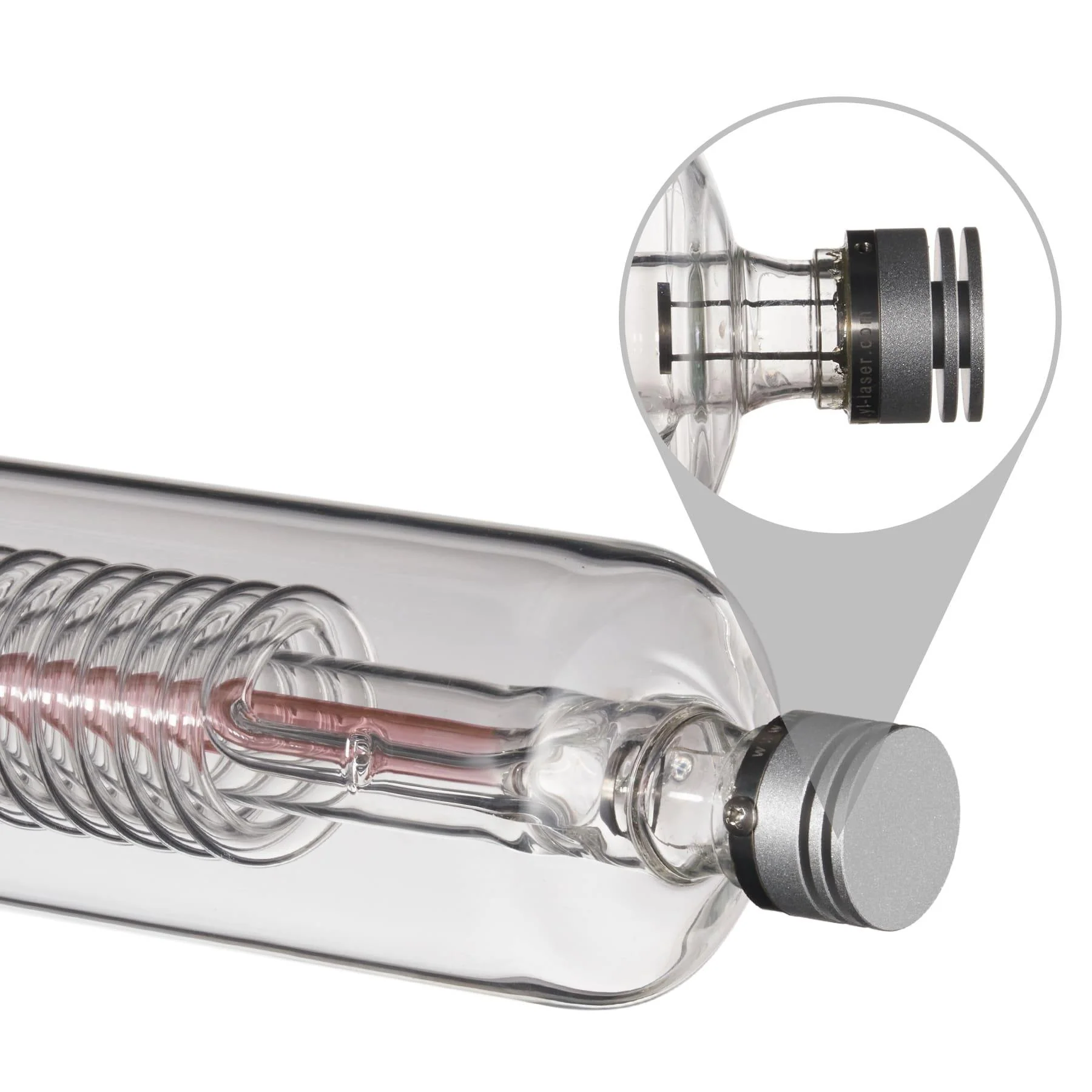

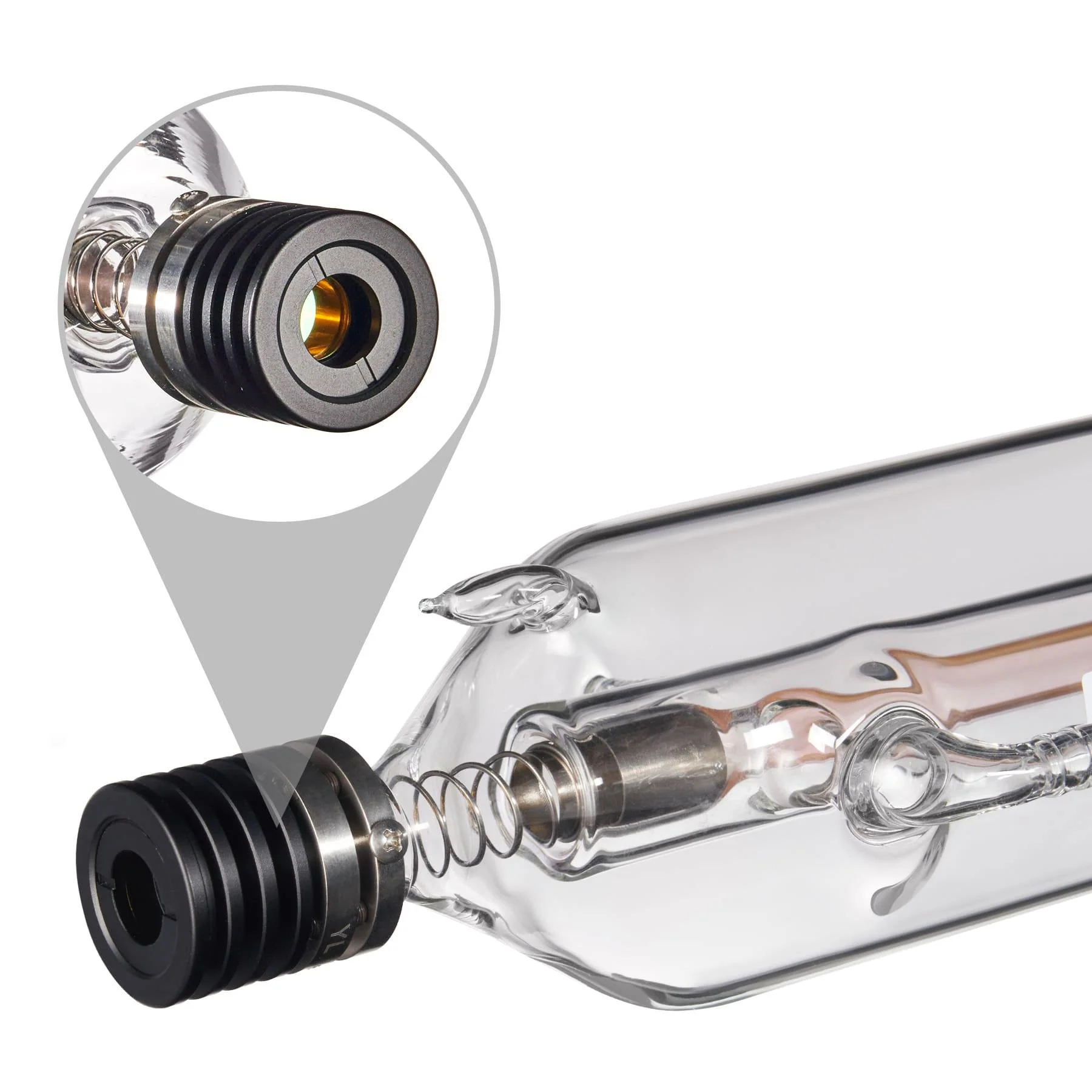

• The preinstalled YL cathode and anode terminal connections with a full metal structure allow safer and faster replacement.

Package Includes:

• 1 x A4S 100W Laser Tube
• 1 x User Manual (English)

Warranty:

• No need to worry! We offer a 1-year warranty on this laser tube.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
