YL A Series A6s 130W CO2 Laser Tube

Download the Manual

Precision Engraving:

• YL CO2 Laser Tubes offer superior construction to produce stable laser beams for precise markings on a wide variety of materials.
• Cut through thicker materials and engrave your designs faster, deeper, and clearer.

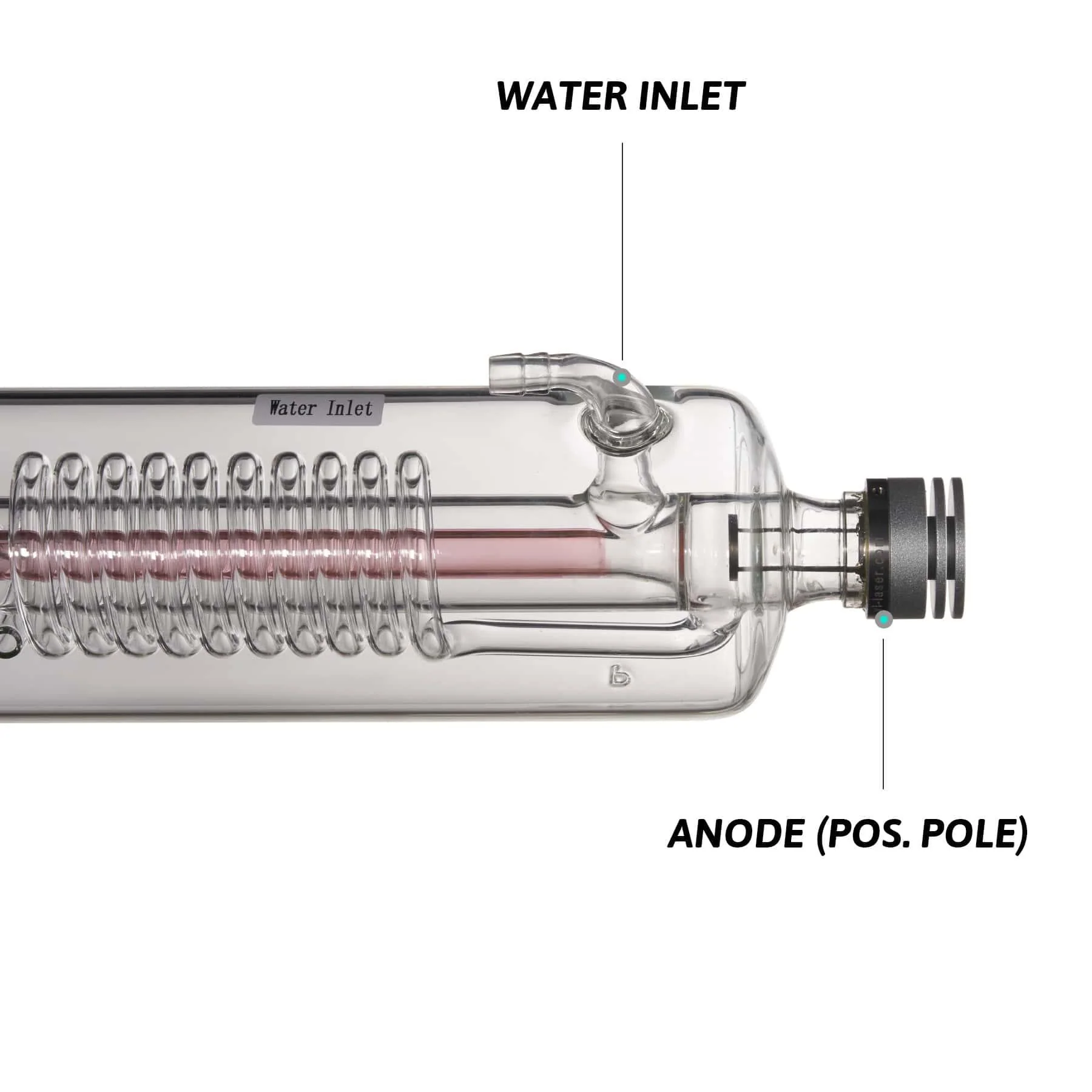

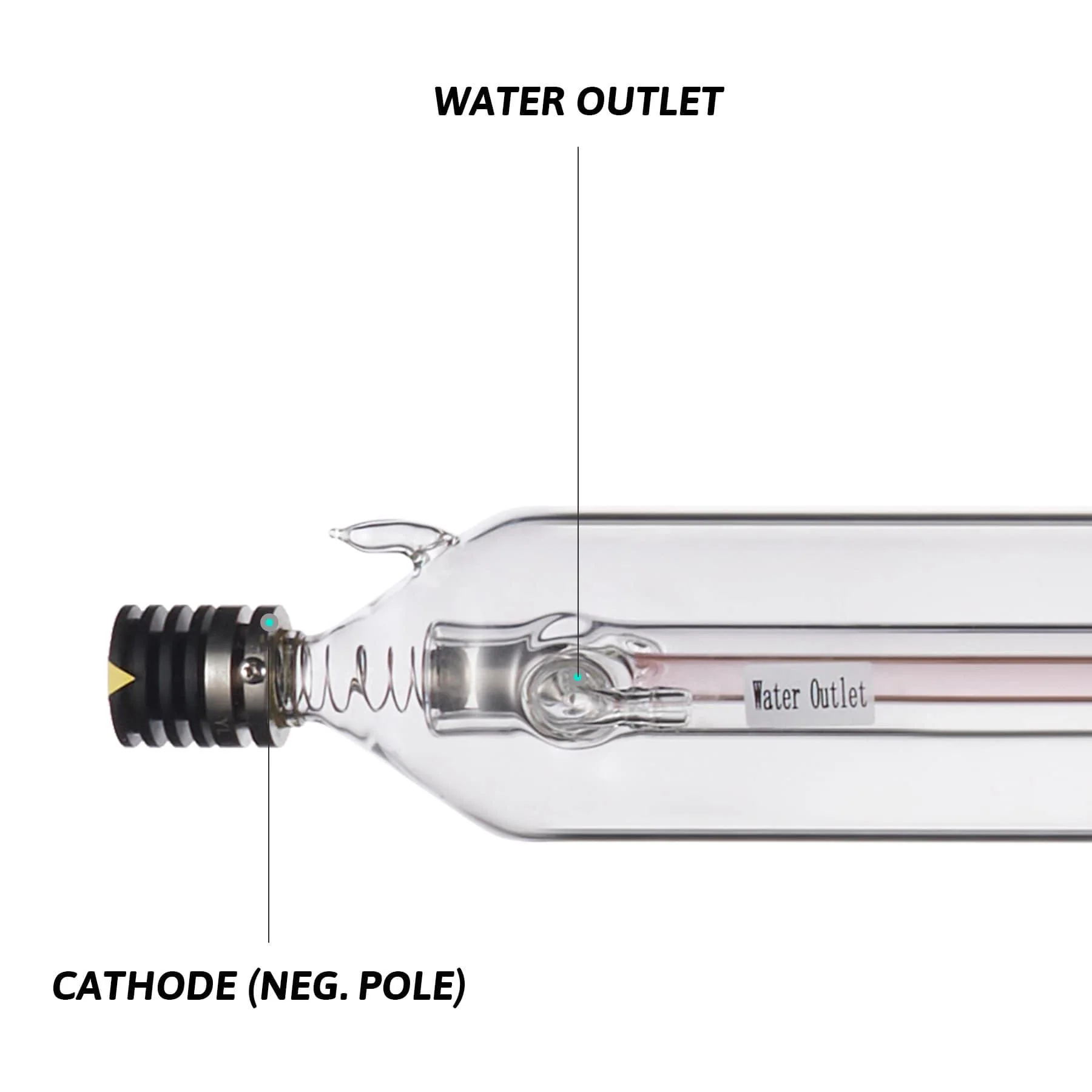

• The water outlet and inlet allow efficient flow of cooling water.

• Made out of borosilicate glass, copper, and aluminum alloy

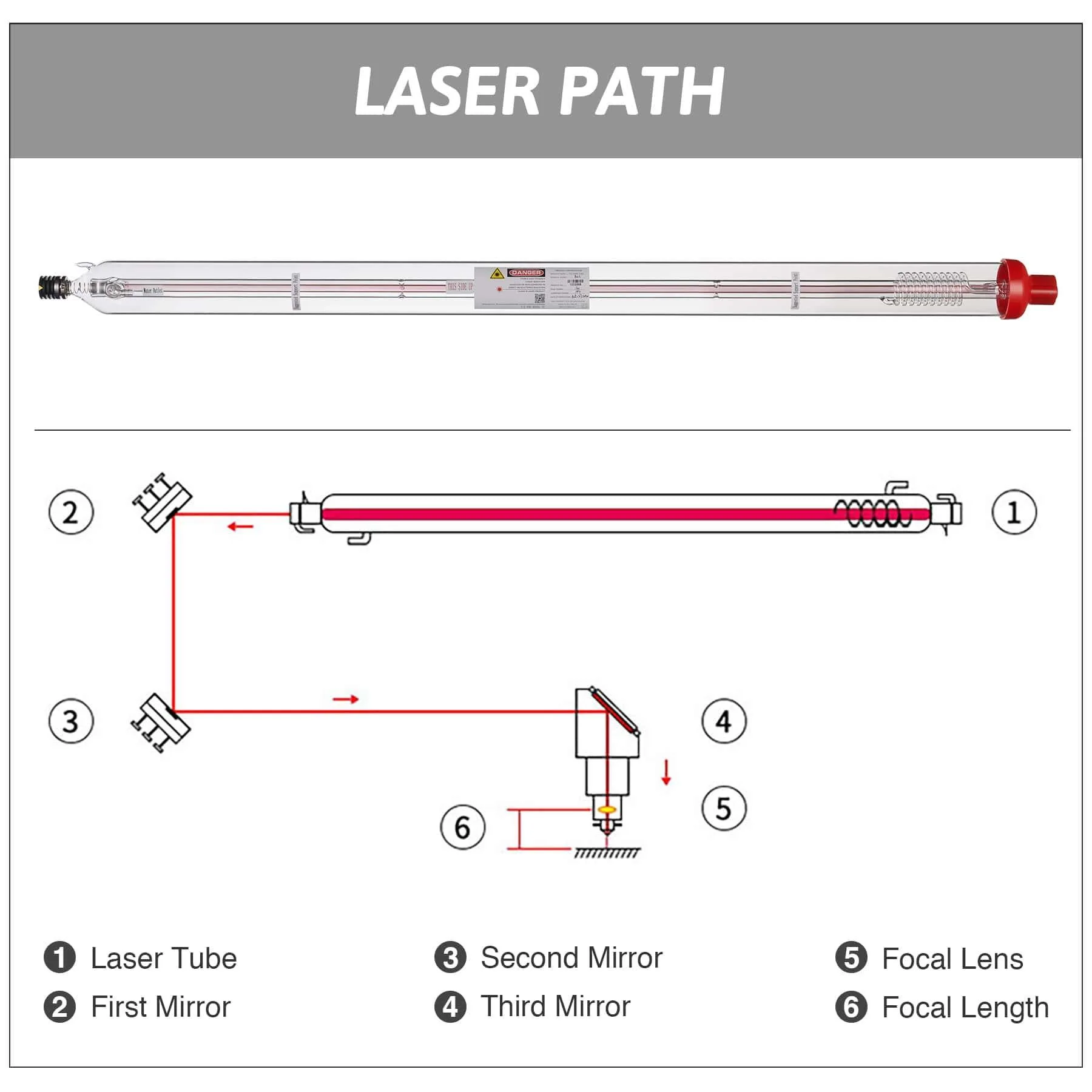

• Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!

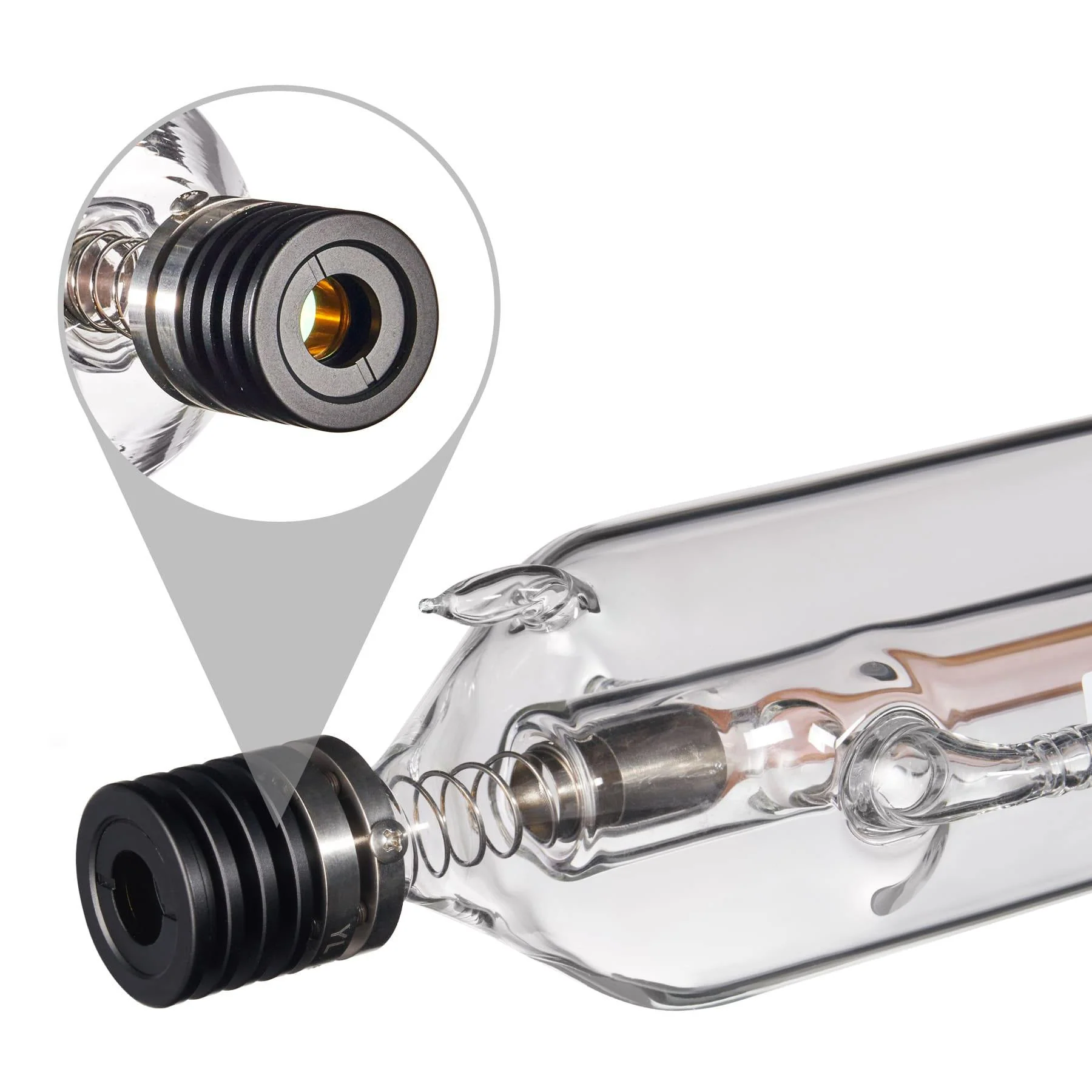

• Simple and easy-to-use grounding and power connections

• We recommend using the OMTech CW-5200 industrial chiller with distilled water to maximize the laser tube’s lifetime.

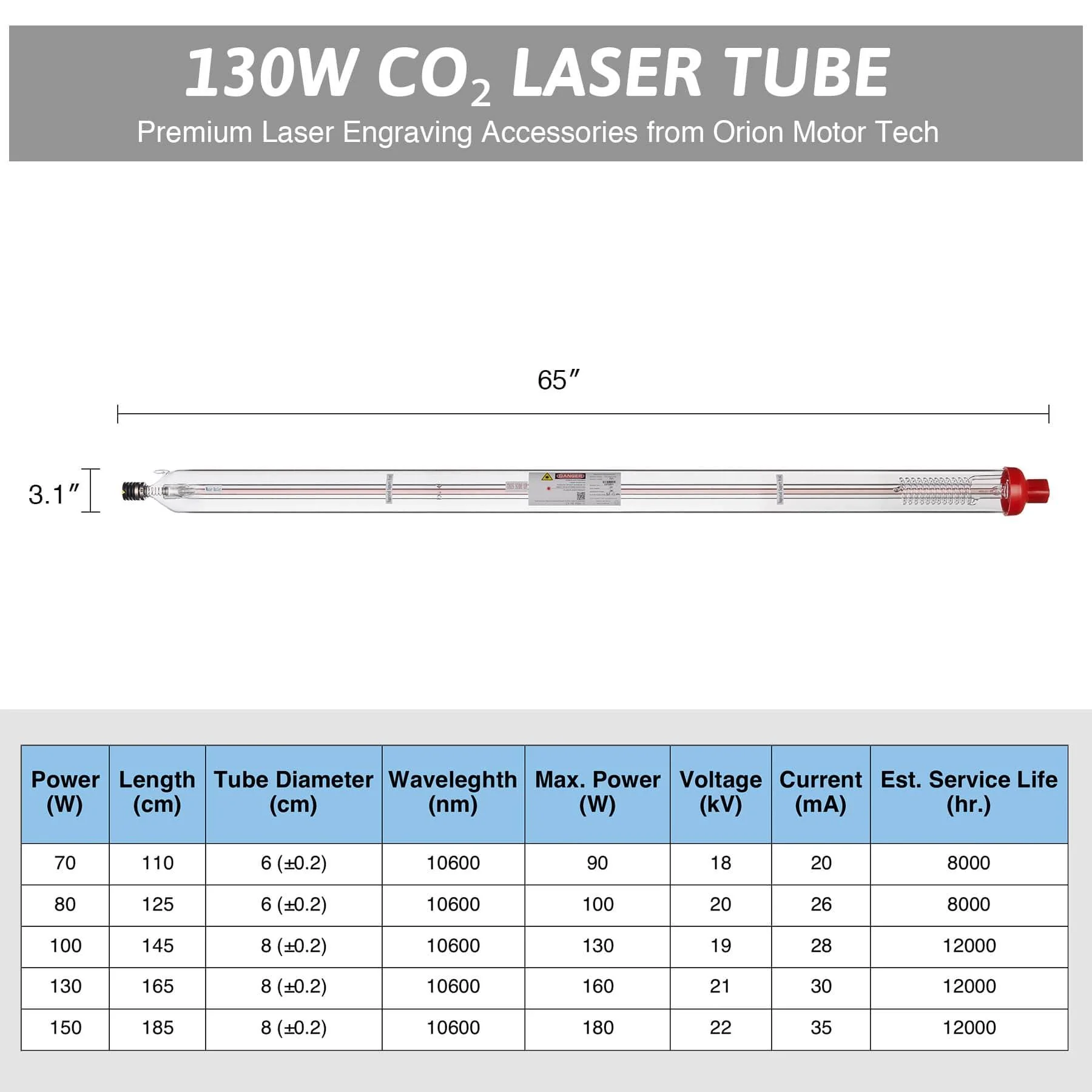

High-Power Specs:

• Rated Power: 130W
• Peak Power: 160W
• Beam Diameter: 0.18 in. (4.5mm)
• Operating Voltage: 21kV
• Max. Operating Current: 30 mA
• Product Length: 65" (1650mm)
• Diameter: 3.1" (80±2mm)
• Net Weight: 8.8 lb (4kg)
• Allowable Humidity: <85%
• Optimum cooling water temperature between 60-70°F (15 -19°C)
• Cut up to 12 mm (½″) thick plywood and acrylic/plexiglass

Extended Lifetime:

• 130W Borosilicate Glass CO2 Laser Tube with an estimated lifetime of up to 12,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 11,000–12,000 Hours
• Moderate Power 40–70% = 9,000–10,000 Hours
• High Power 70–100% = 6,000–7,000 Hours

Easy to Install:

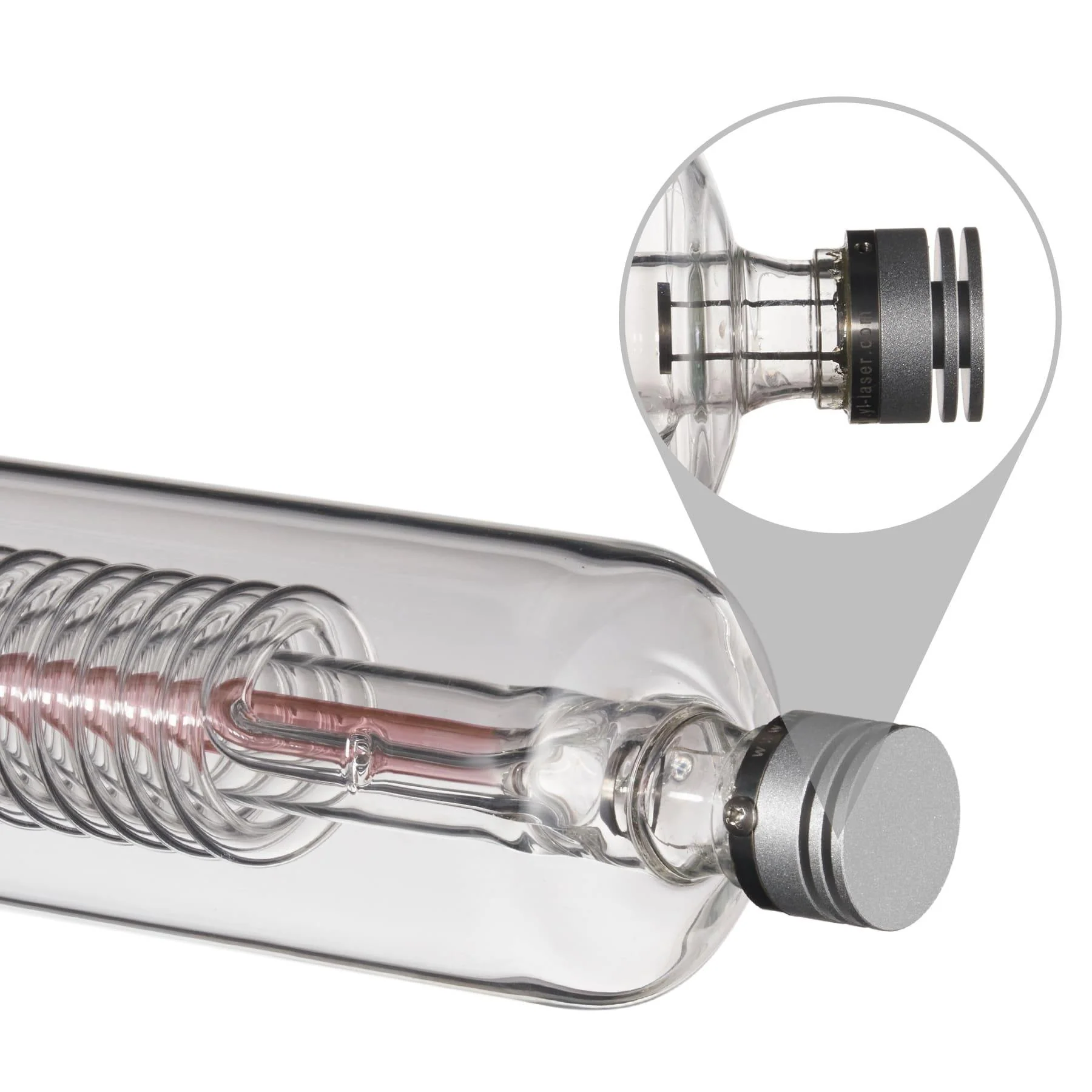

• The preinstalled YL cathode and anode terminal connections allow safer and faster replacement.

Package Includes:

• 1 x A6S 130W Laser Tube
• 1 x User Manual

Warranty:

• No need to worry! We offer a 1-year warranty on all laser tubes 80W and up.

Certifications:

• FDA Compliant
• CE Certification
• ISO9001 Quality Certification
